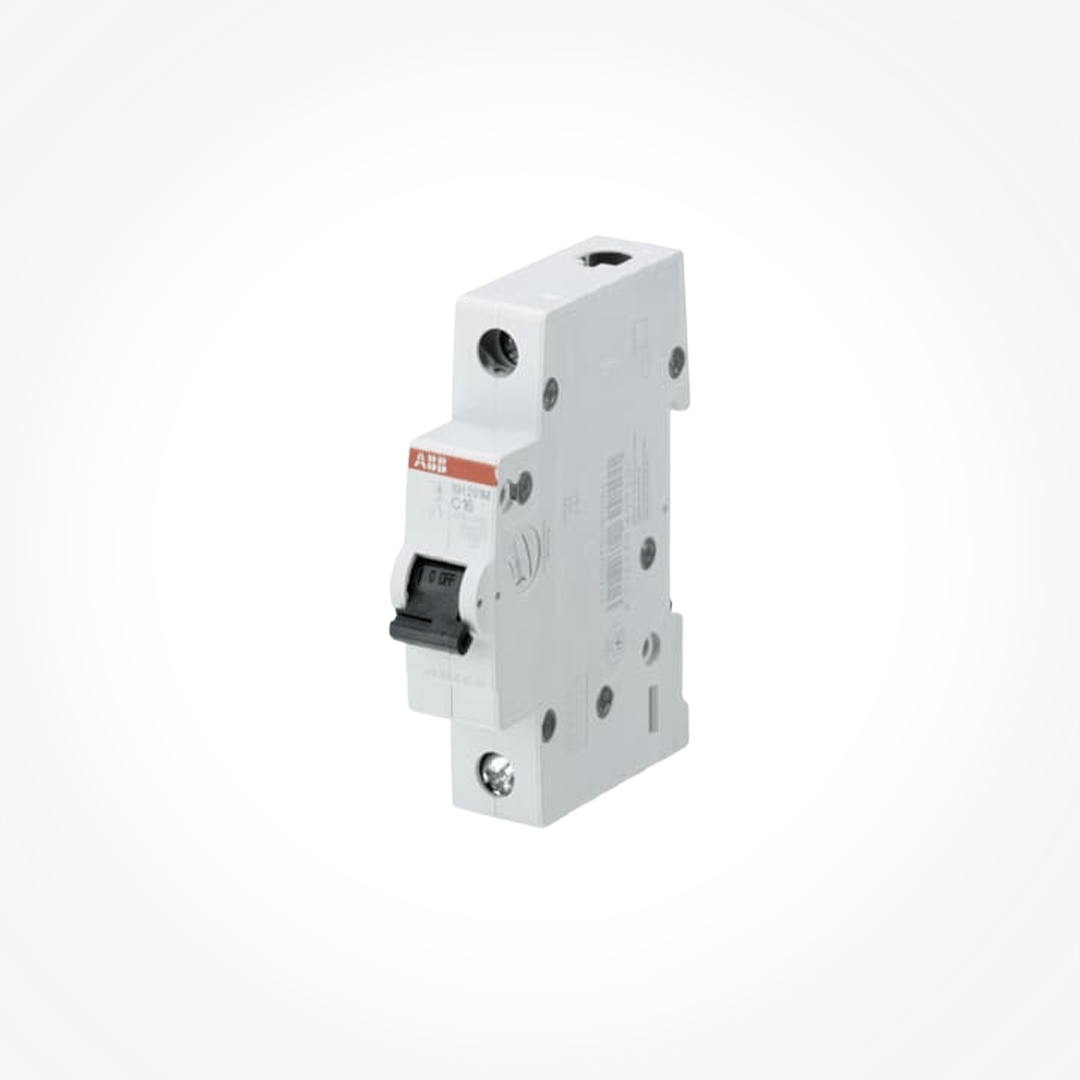

ABB 10A C Curve Single Pole MCB, SH201M-C 10NA (Pack of 6)

The ABB 10A C Curve Single Pole MCB, model SH201M-C 10NA, available in a pack of 6, provides reliable protection against overloads and short circuits for lighting and moderate-load circuits. It features a single pole configuration rated at 10 Amperes with a C Curve trip characteristic suitable for moderate inrush currents and a breaking capacity of 10 kA. The MCB operates at 220-240V AC, 50-60 Hz, with IP20 finger safety protection, low watt loss (50% below IS/IEC 60898 limits), and 25 mm² cage terminals.

Key Specifications

• Poles: Single Pole (1P)

• Rated Current: 10 Amperes

• Curve Type: C Curve (thermal-magnetic trip)

• Rated Voltage: 220-240 V AC

• Frequency: 50-60 Hz

• Breaking Capacity: 10 kA (10000A)

• Housing: Scratch/solvent-resistant polycarbonate

• Terminal Capacity: 25 mm² cage terminals

• Protection Rating: IP20

• Dimensions: 3 x 4 x 10 cm; Weight: 94 g

• Standards: IS/IEC 60898-1, IEC 60947-2 compliant

• Packaging: Pack of 6

Features

• On-off power indicator for clear status

• Current-limiting design for fast short-circuit response

• Easy snap-on mounting on DIN rail

This MCB from ABB's SH200M series suits residential and commercial applications requiring compact, high-performance protection
