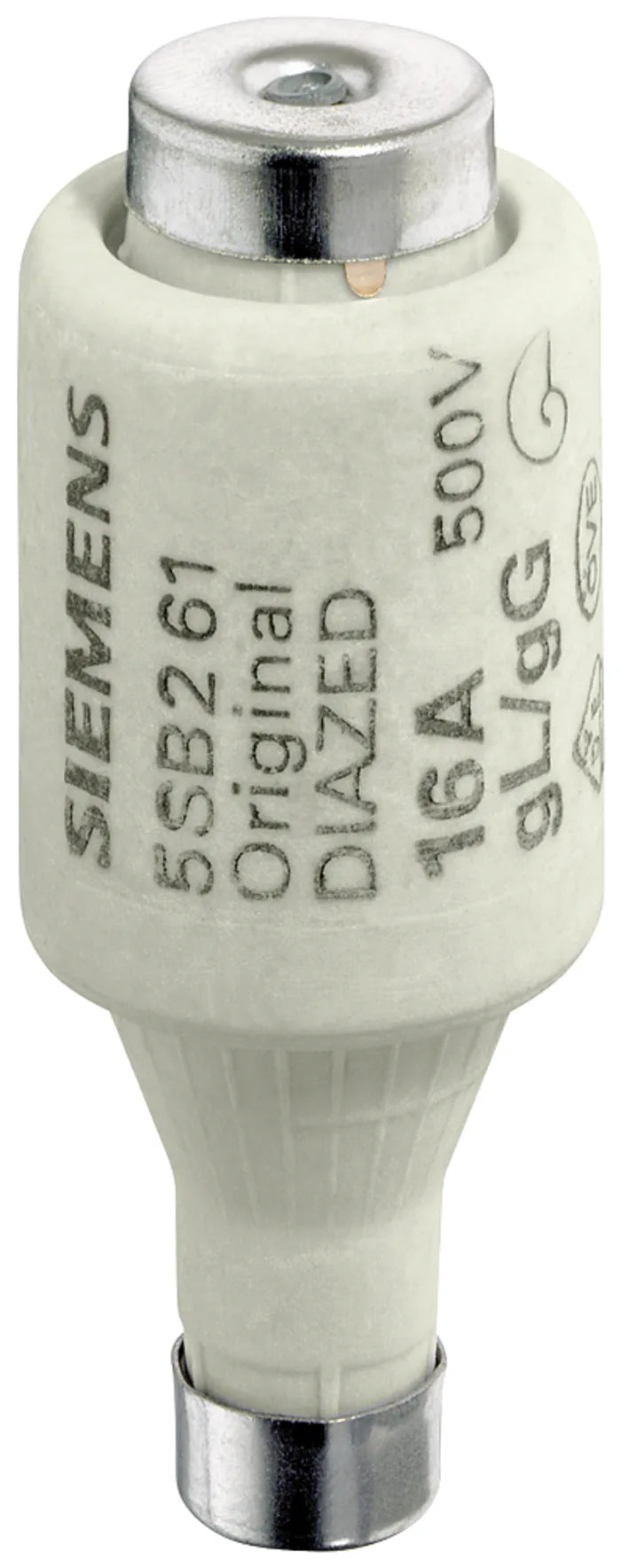

Siemens DIAZED Fuses

Features and Specifications of Siemens DIAZED Fuses:

• Rated Voltages: Typically available from 500V to 750V AC, and up to 750V DC.

• Current Ratings: Ranging from 2A to 100A.

• Breaking Capacities: Up to 50kA AC and 8kA DC for many fuse types.

• Operational Classes: Includes general-purpose (gG), motor protection (aM), semiconductor protection (gR/S), cable and line protection, and transformer protection.

• Design: Screw-in type fuse link with insulated threaded ring for safe removal, compatible with special screw adapters preventing interchange of inappropriate fuses.

• Mounting: Bases must be fed from the bottom for safety; available with touch protection and various terminal options.

• Standards: Compliant with IEC 60269-3, DIN VDE 0635/0636, and other international standards.

• Applications: Primarily used for motor circuits, line and cable protection, semiconductor protection, and transformers.
