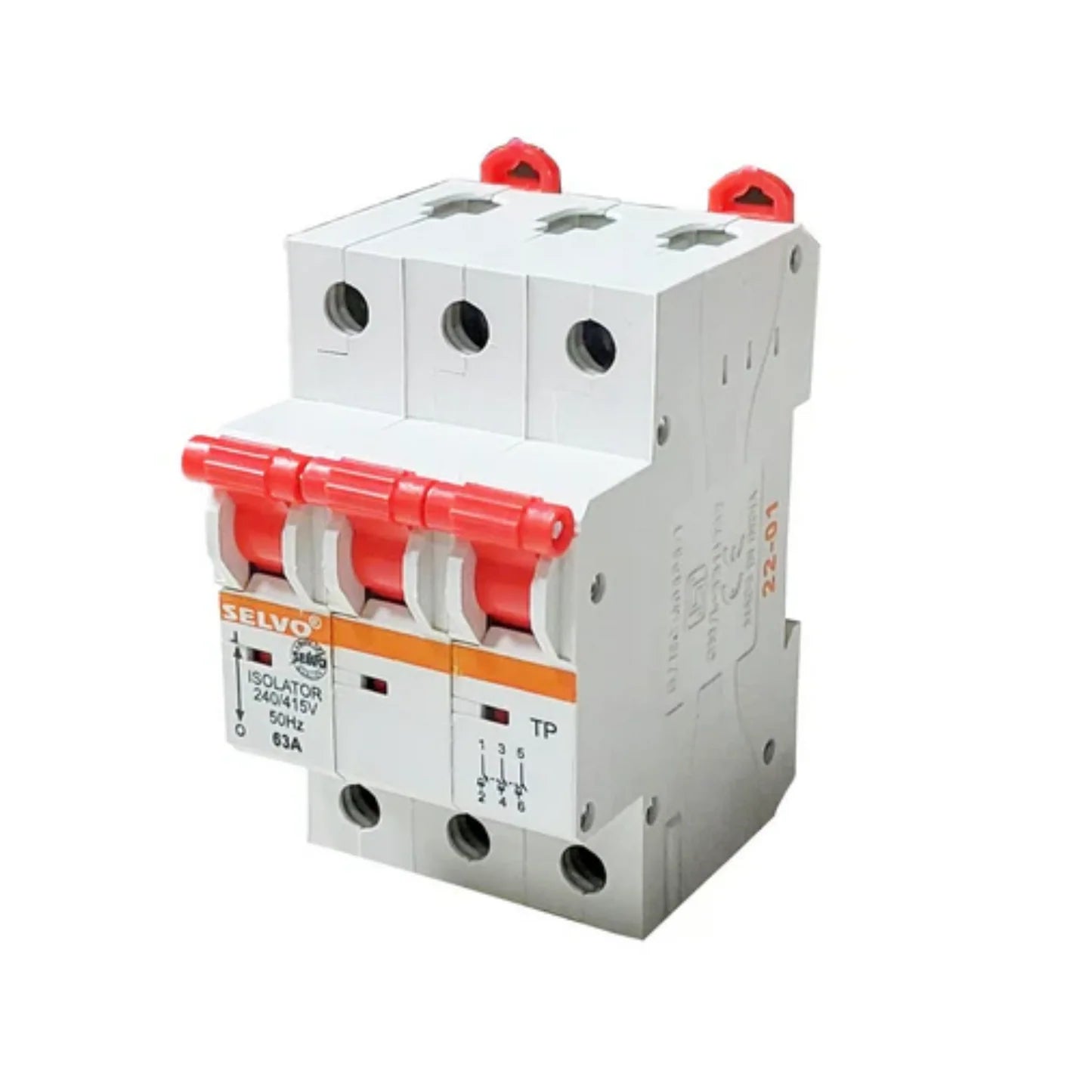

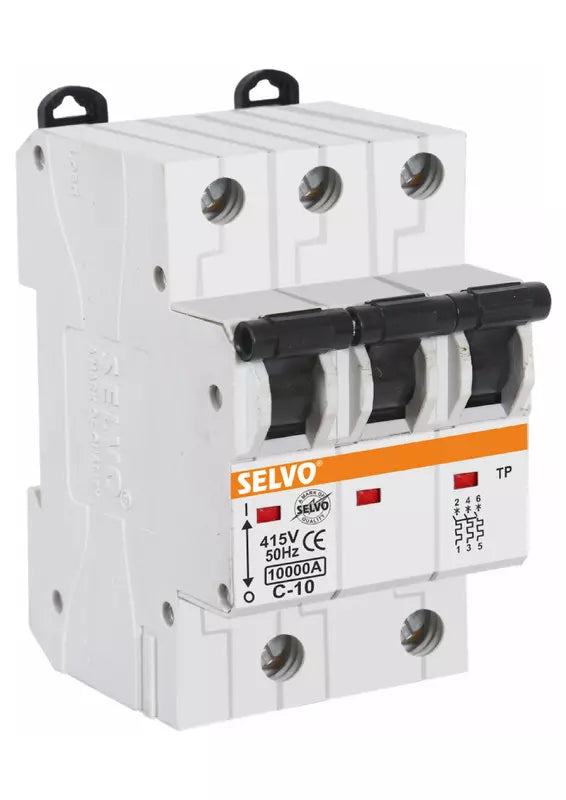

Selvo 63A C Curve Three Pole MCB, GSELTPC12032, (Pack of 6)

The Selvo 63A C-Curve Three Pole MCB, model GSELTPC12032, available in a pack of 6, provides high-capacity overload and short-circuit protection for three-phase circuits in commercial and industrial applications. It features thermal-magnetic tripping, flame-retardant PBT body, and IS/IEC 60898-1 certification for reliable operation.

Key Specifications

• Poles: Three Pole (3P)

• Rated Current: 63 Amperes

• Curve Type: C-Curve (trips at 5-10 times rated current for moderate inrush from motors and heavy loads)

• Rated Voltage: 240/415V AC

• Frequency: 50 Hz

• Breaking Capacity: 10 kA

• Mounting: DIN rail with bi-stable clip

• Terminal Capacity: Up to 35 mm² (aluminum/copper), dual termination with combi-head screws (2 Nm torque)

• Protection Class: IP20

Features

• Positive contact indication (red ON/green OFF)

• 12-plate arc chamber for high-speed quenching (3-5 ms response)

• Air circulation grooves for thermal efficiency; energy limiting Class 3

• Finger-proof shrouded terminals and silver graphite contacts for durability and safety

This robust MCB from Selvo Electricals ensures easy installation and long-term performance in demanding electrical systems.
