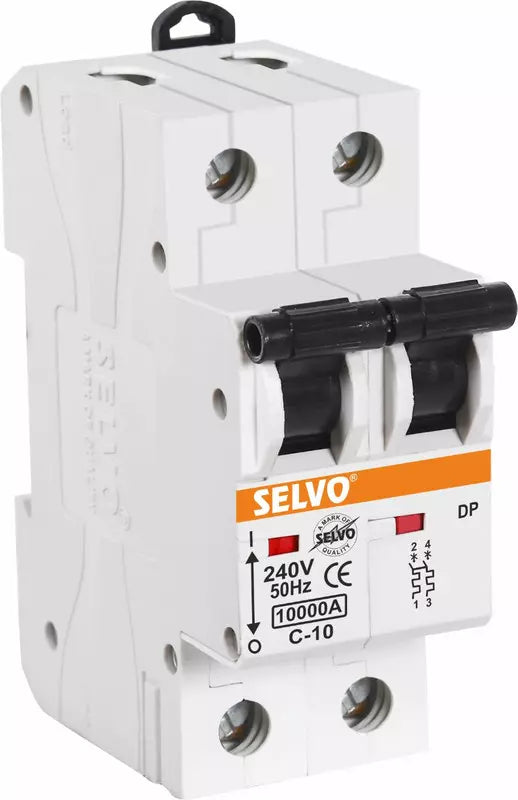

Selvo 32A C Curve Double Pole MCB, GSELDPC12022, (Pack of 12)

The Selvo 32A C-Curve Double Pole MCB, model GSELDPC12022, available in a pack of 12, provides robust overload and short-circuit protection for two-phase circuits in residential, commercial, and light industrial applications. It features a flame-retardant PBT body, thermal-magnetic trip mechanism, and IS/IEC 60898-1 compliance for reliable performance.

Key Specifications

• Poles: Double Pole (2P)

• Rated Current: 32 Amperes

• Curve Type: C-Curve (trips at 5-10 times rated current for moderate inrush loads like motors and lighting)

• Rated Voltage: 240V AC

• Frequency: 50 Hz

• Breaking Capacity: 10 kA

• Dimensions: 8 x 4 x 10 cm; Weight: 0.2 kg

• Mounting: DIN rail with bi-stable clip

• Terminal Capacity: Up to 35 mm² (aluminum/copper), combi-head screws (2 Nm torque)

• Protection Class: IP20

Features

• Positive contact indication (red ON/green OFF)

• High-speed arc quenching with 12-plate chamber

• Air circulation grooves for thermal efficiency; energy limiting Class 3

• Shrouded finger-proof terminals for safety

This durable, cost-effective MCB from Selvo Electricals supports easy installation and long-term circuit safeguarding.
