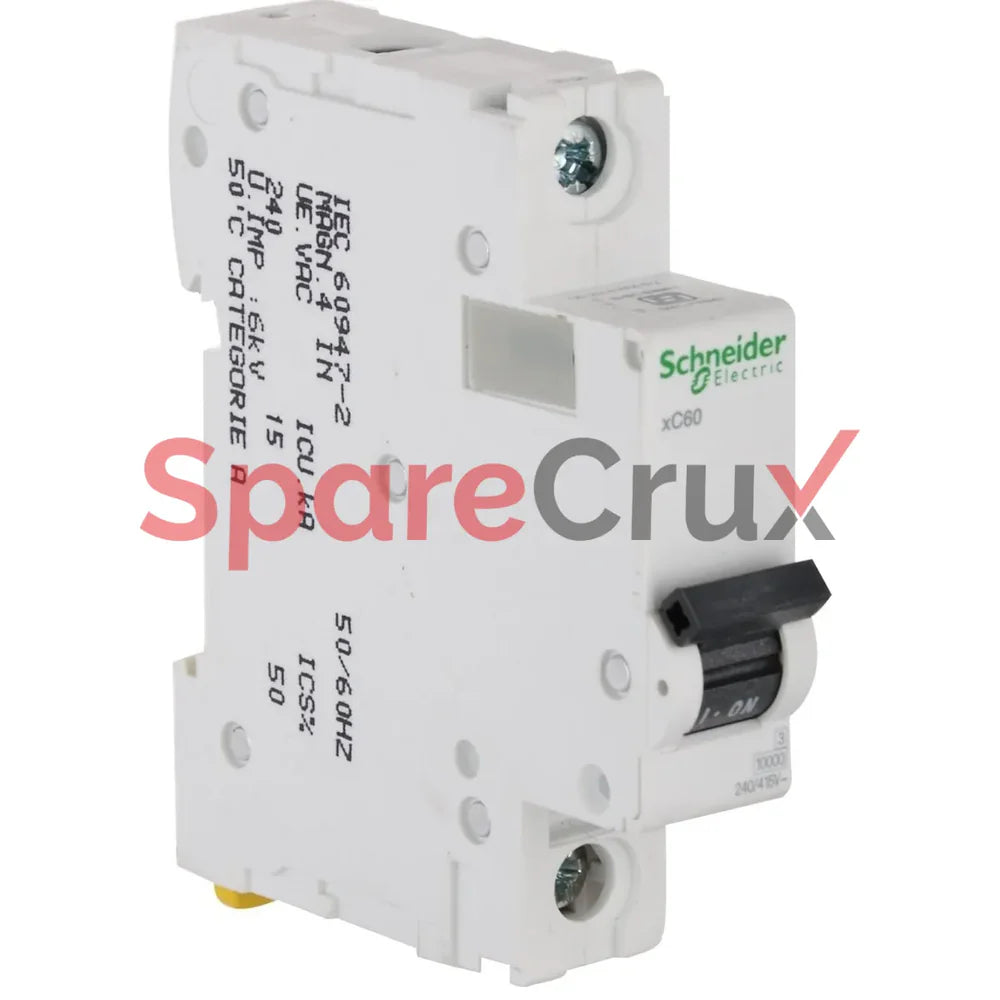

Schneider Electric Acti9 xC60 3A C-Curve Single Pole MCB, A9N1P03C, Breaking Capacity: 10 kA, (Pack of 12)

The Schneider Electric Acti9 xC60 3A C-Curve Single Pole MCB, model A9N1P03C, with a breaking capacity of 10 kA, is supplied in a pack of 12. Its detailed specifications are:

• Poles: Single Pole (1P)

• Current Rating: 3 Amperes

• Breaking Capacity: 10 kA at 230/240V AC (IS/IEC 60898-1)

• Curve Type: C-Curve (for moderate inrush currents such as lighting and motor loads)

• Rated Voltage: 220–240V AC, 50/60 Hz

• Insulation Voltage: 500V AC

• Impulse Withstand Voltage: 6 kV

• Terminal Capacity: Tunnel-type terminals supporting up to 16mm² flexible and 25mm² rigid wires at the bottom; Biconnect terminals on the top

• Mounting: Clip-on 35mm DIN rail, modular width 18mm, height 85mm, depth 77.5mm

• Mechanical and Electrical Durability: 20,000 operations

• Features: Positive contact indication for assurance of disconnection, energy limitation Class 3 for system protection, reversible Line-Load connection for ease of installation, fast closure mechanism, compatible with field-fit auxiliaries for advanced protection and monitoring

• Standards: Certified under IS/IEC 60898-1, EN/IEC 60947-2

• Applications: Suitable for residential, commercial, and industrial electrical circuit protection with reliable performance and easy integration in distribution panels

This model provides robust circuit protection with Schneider Electric's reliability and innovation, ensuring safety and efficiency in various electrical applications.
