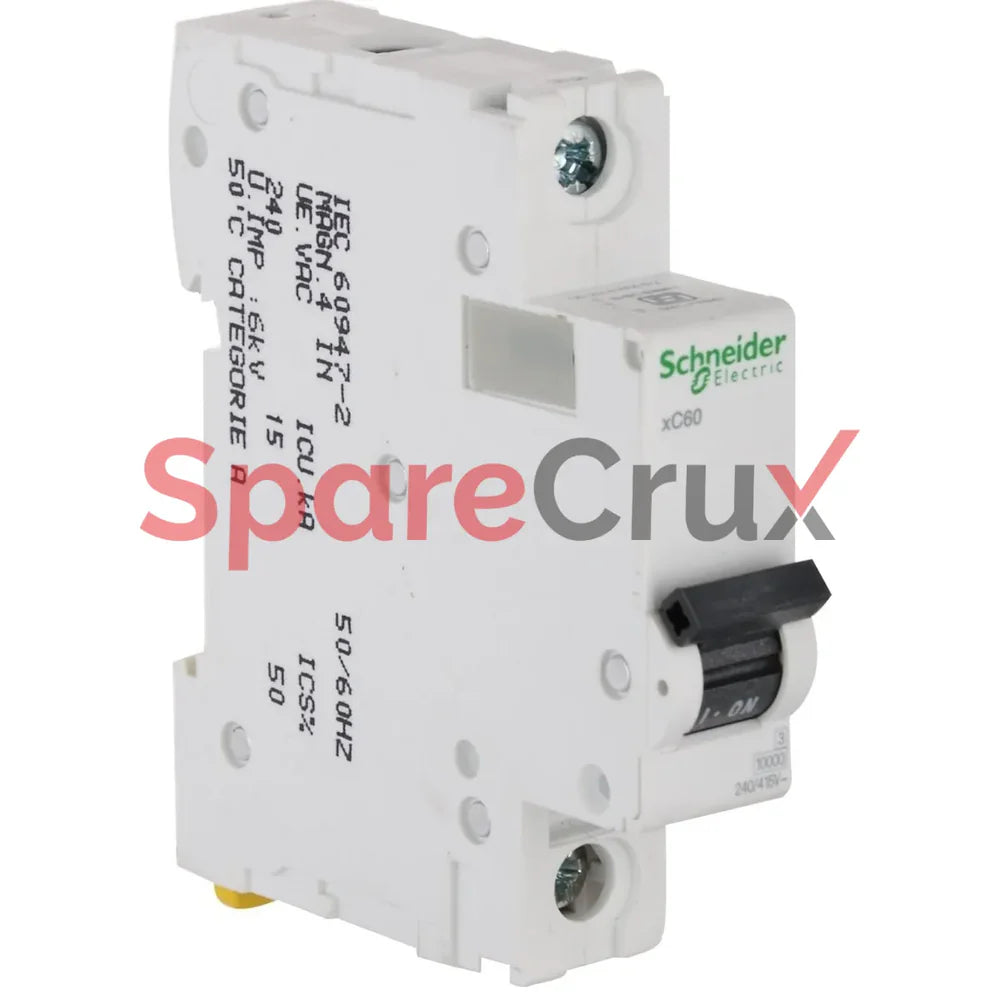

Schneider Electric Acti9 xC60 2A C-Curve Single Pole MCB, A9N1P02C, Breaking Capacity: 10 kA, (Pack of 12)

The Schneider Electric Acti9 xC60 2A C-Curve Single Pole MCB, model A9N1P02C, with a breaking capacity of 10 kA, comes as a pack of 12 units. Key specifications include:

• Poles: Single Pole (1P)

• Rated Current: 2 Amperes

• Breaking Capacity: 10 kA at 230/240V AC

• Curve Type: C-Curve (suitable for moderate inrush currents such as lighting and motor loads)

• Rated Operational Voltage: 220–240V AC, 12–48V DC, 60V DC

• Insulation Voltage: 500V AC

• Impulse Withstand Voltage: 6 kV

• Terminal Capacity: Tunnel type terminals (bottom) support 16mm² flexible and 25mm² rigid wire; Biconnect terminals on top

• Mounting: Clip-on 35mm DIN rail

• Dimensions: 85 mm height × 18 mm width × 77.5 mm depth

• Operating Temperature: -30°C to 70°C

• Mechanical and Electrical Durability: 20,000 operations

• Features: Positive contact indication for assurance of disconnection, suitable for DC applications up to 60V per pole, energy limitation Class 3, fast closure mechanism, reversible line-load installation, field-fit table auxiliaries for advanced protection and monitoring, compatible with Schneider Acti 9 accessories

• Standards: Complies with IS/IEC 60898-1 and EN/IEC 60947-2

This MCB is designed for reliable circuit protection in various residential, commercial, and industrial applications, offering easy installation, high durability, and safety compliance in a compact modular form factor.
