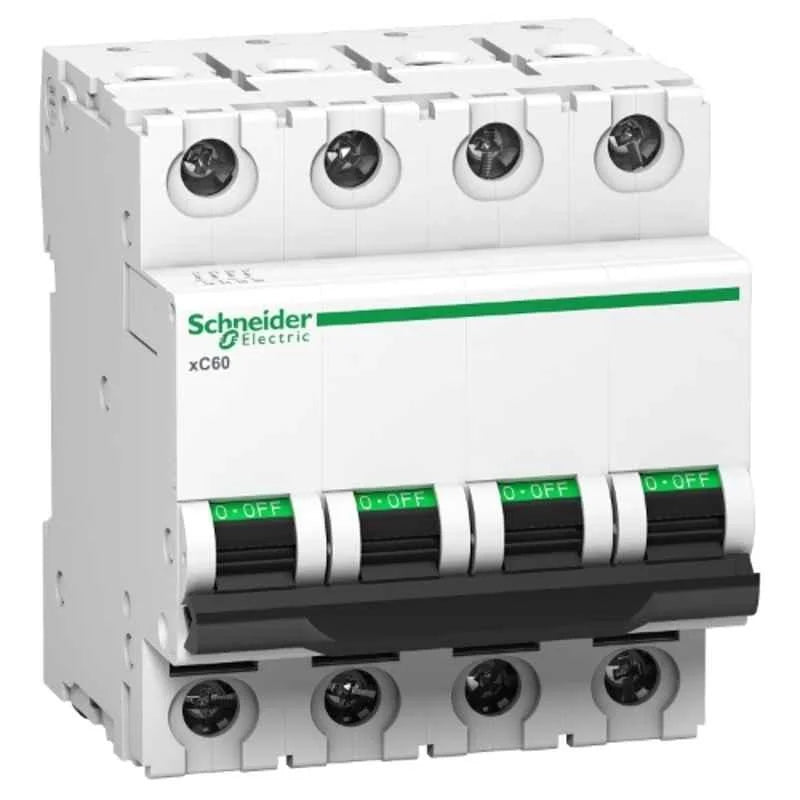

Schneider Electric Acti9 xC60 25A C-Curve Four Pole MCB, A9N4P25C, Breaking Capacity: 10kA, (Pack of 6)

The Schneider Electric Acti9 xC60 25A C-Curve Four Pole MCB, model A9N4P25C, with a breaking capacity of 10 kA, is supplied in a pack of 6 units. Key specifications are:

• Poles: Four Pole (4P)

• Current Rating: 25 Amperes

• Rated Voltage: 240V AC, 50/60 Hz

• Breaking Capacity: 10 kA at 415V AC, compliant with IS/IEC 60898-1 and EN/IEC 60947-2 standards

• Curve Type: C-Curve, suited for moderate inrush currents typical of lighting and motor loads

• Terminal Capacity: Tunnel-type terminals support up to 16 mm² flexible and 25 mm² rigid wires; Biconnect terminals on top for easy wiring

• Mounting: Clip-on 35 mm DIN rail; dimensions approx. 85 mm height × 72 mm width × 77.5 mm depth

• Mechanical & Electrical Durability: 20,000 mechanical cycles, 10,000 electrical cycles

• Insulation Voltage: 500V AC

• Impulse Withstand Voltage: 6 kV

• Protection Class: IP20

• Operating Temperature: -30°C to 70°C

• Features: Positive contact indication, energy limitation Class 3, reversible line-load installation, fast closure mechanism, compatibility with Schneider Acti9 auxiliaries for enhanced monitoring and protection

• Suitable Applications: Reliable overload and short circuit protection in residential, commercial, and industrial four-pole electrical systems

This MCB combines high safety standards, reliability, and energy efficiency in a compact modular design from Schneider Electric, ideal for various electrical distribution applications.
