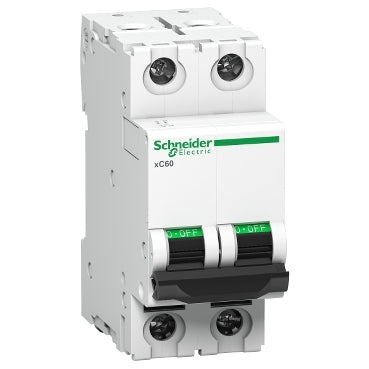

Schneider Electric Acti9 xC60 25A C-Curve Double Pole MCB, A9N2P25C, Breaking Capacity: 10 kA, (Pack of 6)

The Schneider Electric Acti9 xC60 25A C-Curve Double Pole MCB, model A9N2P25C, with a breaking capacity of 10 kA, is available in a pack of 6 units. Key specifications and features include:

• Poles: Double Pole (2P)

• Current Rating: 25 Amperes

• Rated Voltage: 220-240V AC, 50/60 Hz

• Breaking Capacity: 10 kA at 230/240V AC (compliant with IS/IEC 60898-1)

• Curve Type: C-Curve, designed to handle moderate inrush currents such as those from lighting and motor loads

• Terminal Capacity: Tunnel-type terminals supporting up to 16 mm² flexible and 25 mm² rigid wires; Biconnect terminals on top for easy wiring

• Mounting: Clip-on 35 mm DIN rail, modular width 36 mm, height 85 mm, depth 77.5 mm

• Mechanical and Electrical Durability: 20,000 operations each

• Features: Positive contact indication for operational safety, energy limitation Class 3 for system protection, reversible line-load installation for easy wiring, fast closure mechanism, compatibility with Schneider Acti9 field-fit auxiliaries for expanded protection and monitoring

• Insulation Voltage: 500V AC

• Impulse Withstand Voltage: 6 kV

• Protection Class: IP20

• Suitable for residential, commercial, and industrial applications requiring reliable overload and short circuit protection

This MCB is engineered for durability, safety, and energy efficiency, making it a dependable choice for various electrical distribution panels under Schneider Electric's trusted brand.
