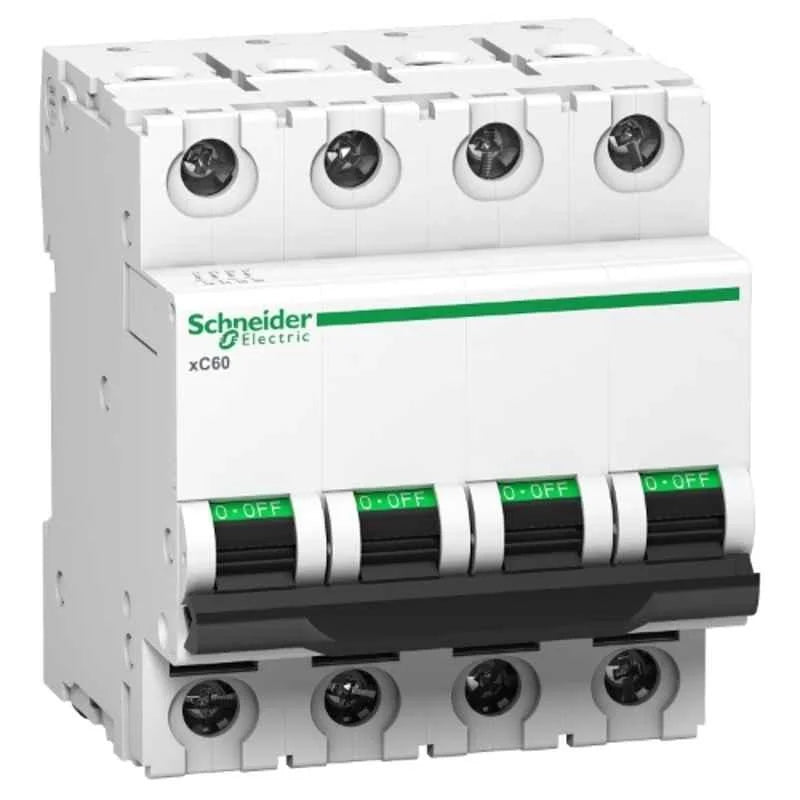

Schneider Electric Acti9 xC60 20A C-Curve Four Pole MCB, A9N4P20C, Breaking Capacity: 10 kA, (Pack of 6)

The Schneider Electric Acti9 xC60 20A C-Curve Four Pole MCB, model A9N4P20C, with a breaking capacity of 10 kA, is available in a pack of 6 units. Its specifications and features include:

• Poles: Four Pole (4P)

• Current Rating: 20 Amperes

• Rated Voltage: 240V AC, 50/60 Hz

• Breaking Capacity: 10 kA at 415V AC, compliant with IS/IEC 60898-1 and EN/IEC 60947-2

• Curve Type: C-Curve, suitable for moderate inrush currents such as those from lighting and motor loads

• Terminal Capacity: Tunnel-type terminals for up to 16mm² flexible and 25mm² rigid wire; Biconnect terminals on top

• Mounting: Clip-on 35mm DIN rail, dimensions approx. 72 mm width × 85 mm height × 77.5 mm depth

• Mechanical & Electrical Durability: Rated for 20,000 operating cycles

• Features: Positive contact indication (ON/OFF), energy limitation Class 3, reversible line-load installation, fast closure mechanism, compatibility with Schneider Acti9 auxiliaries for enhanced monitoring and protection

• Insulation Voltage: 500V AC

• Impulse Withstand Voltage: 6 kV

• Protection Class: IP20

• Operating Temperature Range: -30°C to 70°C

• Applications: Designed for reliable overload and short circuit protection in residential, commercial, and light industrial four-pole electrical systems

This compact, modular MCB delivers high safety, durability, and energy-efficient protection, making it a trusted choice across various electrical distribution applications by Schneider Electric.
