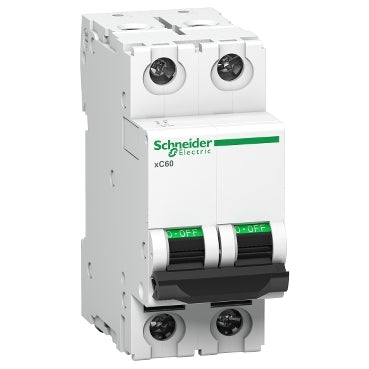

Schneider Electric Acti9 xC60 20A C-Curve Double Pole MCB, A9N2P20C, Breaking Capacity: 15 kA, (Pack of 6)

The Schneider Electric Acti9 xC60 20A C-Curve Double Pole MCB, model A9N2P20C, with a breaking capacity of 15 kA, is supplied as a pack of 6. Key specifications and features include:

• Poles: Double Pole (2P)

• Current Rating: 20 Amperes

• Rated Voltage: 380-415V AC

• Breaking Capacity: 15 kA (higher breaking capacity than typical 10 kA models)

• Curve Type: C-Curve, suitable for moderate inrush currents typical of lighting and motor applications

• Terminal Capacity: Supports cables up to 16mm² flexible and 25mm² rigid wires (tunnel terminals at bottom) with Biconnect terminals on top

• Mounting: Clip-on 35mm DIN rail, modular width 36mm, height 85mm, depth 77.5mm

• Mechanical & Electrical Durability: 20,000 operations

• Features: Positive contact indication for assured disconnection, energy limitation Class 3, reversible line-load installation, fast closure mechanism, compatibility with Schneider Acti9 field-fit auxiliaries for monitoring and protection

• Protection Class: IP20

• Insulation Voltage: 500V AC

• Impulse Withstand Voltage: 6 kV

• Operating Temperature: -30°C to 70°C

• Standards: Complies with EN/IEC 60898-1 and EN/IEC 60947-2 standards

This MCB provides robust, energy-efficient electrical circuit protection suitable for residential, commercial, and industrial applications, ensuring high safety and reliability with Schneider Electric's trusted quality and innovative design.
