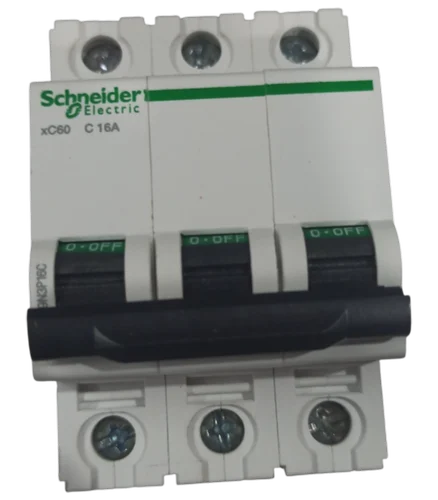

Schneider Electric Acti9 xC60 16A C-Curve Three Pole MCB, A9N3P16C, Breaking Capacity: 10 kA, (Pack of 6)

The Schneider Electric Acti9 xC60 16A C-Curve Three Pole MCB, model A9N3P16C, with a breaking capacity of 10 kA, is available in a pack of 6. Its important specifications and features include:

• Poles: Three Pole (3P)

• Current Rating: 16 Amperes

• Rated Voltage: 240V AC, 50/60 Hz

• Breaking Capacity: 10 kA at 415V AC, compliant with EN/IEC 60898-1 and EN/IEC 60947-2

• Curve Type: C-Curve, suitable for moderate inrush currents typical in motor and lighting loads

• Terminal Capacity: Tunnel-type terminals supporting 16mm² flexible and 25mm² rigid wires, Biconnect terminals on top

• Mounting: Clip-on 35mm DIN rail, modular width 54mm, height 85mm, depth 77.5mm

• Mechanical & Electrical Durability: Rated for 20,000 mechanical and electrical operations

• Features: Positive contact indication, energy limitation class 3, reversible line-load installation, fast closure mechanism, compatible with Schneider Acti9 field-fit auxiliaries for enhanced protection and monitoring

• Operating Temperature: -30°C to 70°C

• Protection Class: IP20

• Insulation Voltage: 500V AC

• Impulse Withstand Voltage: 6 kV

• Applications: Reliable overload and short circuit protection in three-phase residential, commercial, and industrial electrical installations

This MCB combines safety, reliability, and efficiency with a compact modular design from Schneider Electric, ensuring durable and compliant circuit protection.
