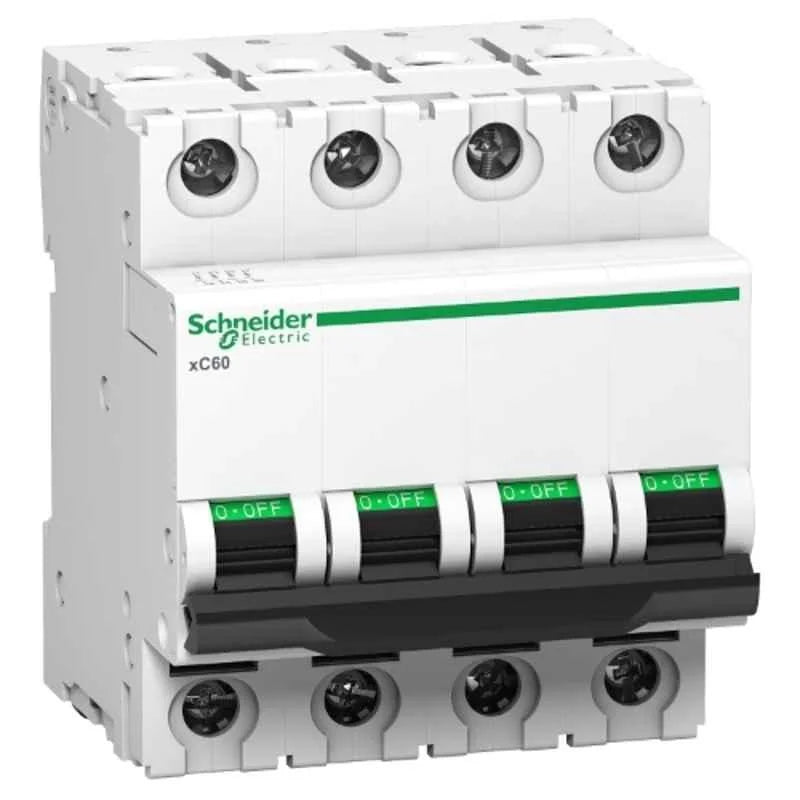

Schneider Electric Acti9 xC60 16A C-Curve Four Pole MCB, A9N4P16C, Breaking Capacity: 10kA, (Pack of 6)

The Schneider Electric Acti9 xC60 16A C-Curve Four Pole MCB, model A9N4P16C, with a breaking capacity of 10 kA, is available in a pack of 6. Key features and specifications include:

• Poles: Four Pole (4P)

• Current Rating: 16 Amperes

• Rated Voltage: 240V AC

• Breaking Capacity: 10 kA at 415V AC, compliant with IS/IEC 60898-1 and EN/IEC 60947-2 standards

• Curve Type: C-Curve, ideal for circuits with moderate inrush currents like motor and lighting applications

• Terminal Capacity: Tunnel-type terminals support up to 16 mm² flexible and 25 mm² rigid wires; Biconnect terminals on top for easy wiring

• Mounting: Clip-on 35 mm DIN rail; dimensions approx. 85 mm height × 72 mm width × 77.5 mm depth

• Mechanical and Electrical Durability: Rated for 20,000 operations each

• Insulation Voltage: 500V AC

• Impulse Withstand Voltage: 6 kV

• Protection Class: IP20

• Operating Temperature: -30°C to 70°C

• Features: Positive contact indication (ON/OFF), energy limitation Class 3, reversible line-load installation, fast closure mechanism, compatibility with Schneider Acti9 field-fit auxiliaries for monitoring and control

• Applications: Designed for reliable overload and short circuit protection in residential, commercial, and industrial four-pole electrical systems

This MCB ensures reliable, safe, and efficient circuit protection with Schneider Electric’s trusted quality and innovative modular design, suitable for diverse electrical distribution applications.
