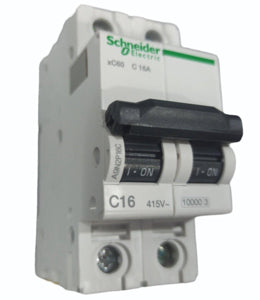

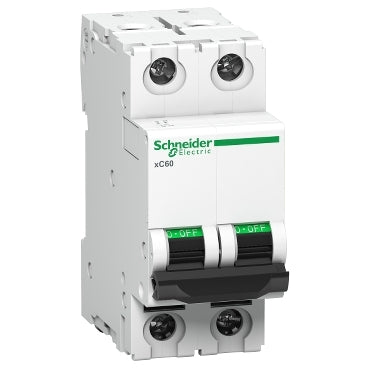

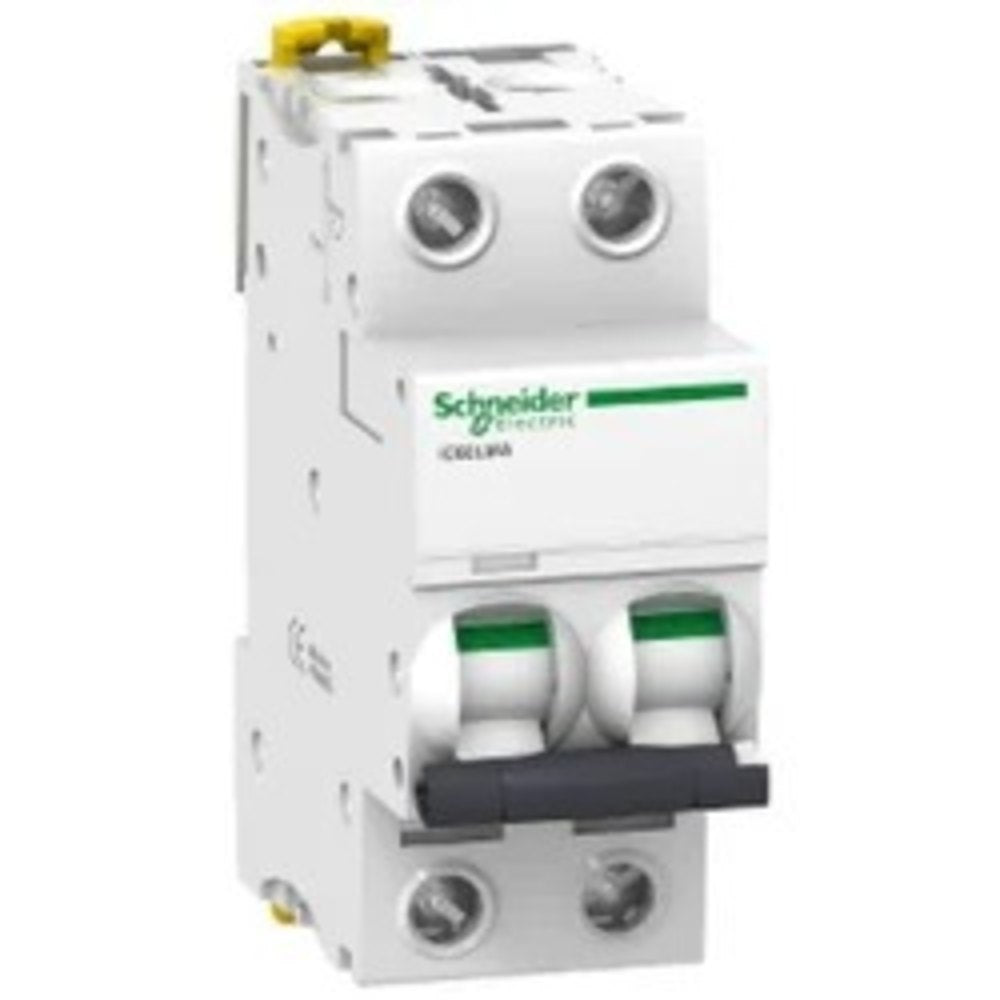

Schneider Electric Acti9 xC60 16A C-Curve Double Pole MCB, A9N2P16C, Breaking Capacity: 10 kA, (Pack of 6)

The Schneider Electric Acti9 xC60 16A C-Curve Double Pole MCB, model A9N2P16C, with a breaking capacity of 10 kA, is available in a pack of 6. Key specifications are:

• Poles: Double Pole (2P)

• Current Rating: 16 Amperes

• Rated Voltage: 220-240V AC, 50/60 Hz

• Breaking Capacity: 10 kA at 230/240V AC, compliant with IS/IEC 60898-1 and EN/IEC 60947-2 standards

• Curve Type: C-Curve designed for moderate inrush currents such as lighting and motor circuits

• Terminal Capacity: Tunnel-type terminals accepting up to 16mm² flexible and 25mm² rigid wires; Biconnect terminals on top

• Mounting: Clip-on 35mm DIN rail; width 36mm, height 85mm, depth 77.5mm

• Mechanical and Electrical Durability: 20,000 operations mechanical and electrical

• Features: Positive contact indication, energy limitation class 3, reversible line-load installation, fast closure mechanism, compatibility with Schneider Acti9 auxiliaries for enhanced protection and monitoring

• Insulation Voltage: 500V AC

• Impulse Withstand Voltage: 6 kV

• Operating Temperature: -30°C to 70°C

• Protection Class: IP20

This MCB is engineered to offer safe, reliable, and efficient circuit protection with easy panel integration, ideal for residential, commercial, and industrial applications.
