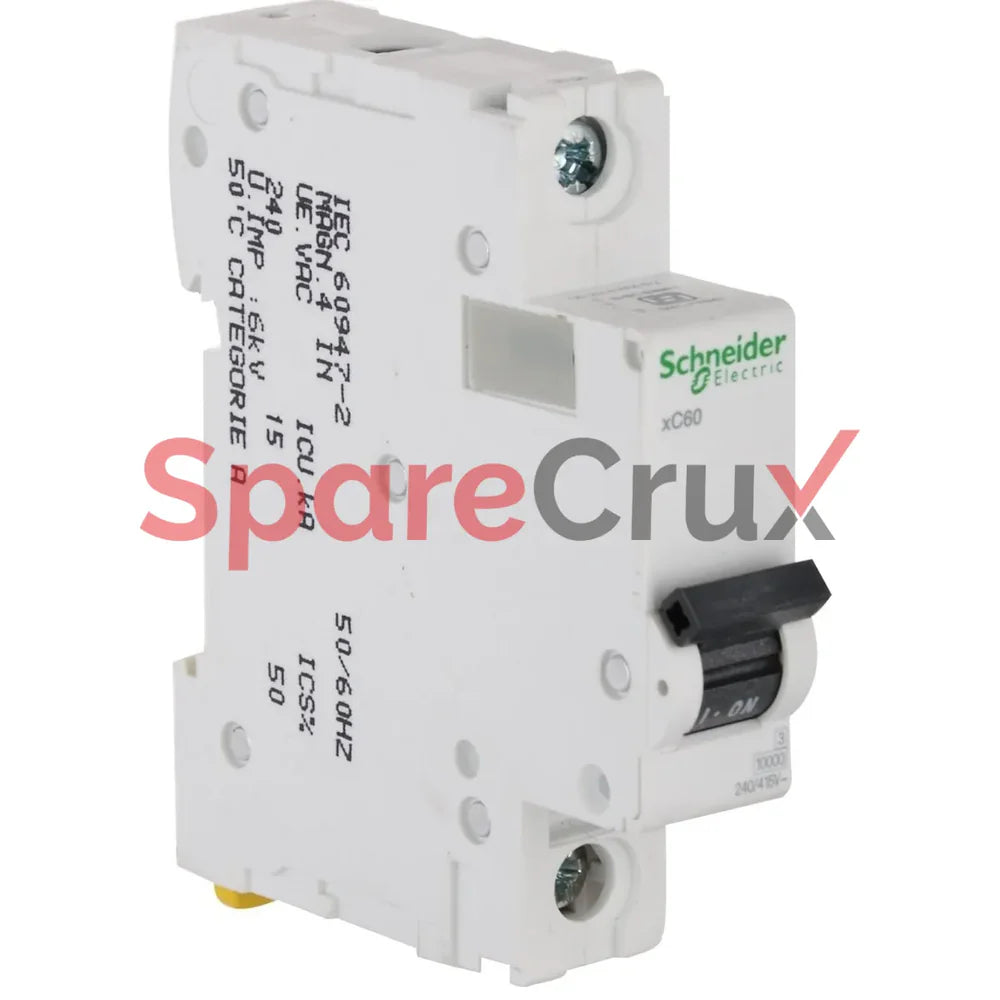

Schneider Electric Acti9 XC60 10A C-Curve Single Pole MCB, A9N1P10C, Breaking Capacity: 10 kA (Pack of 12)

The Schneider Electric Acti9 xC60 10A C-Curve Single Pole MCB, model A9N1P10C, with a breaking capacity of 10 kA, is offered in a pack of 12 units. The key specifications are:

• Poles: Single Pole (1P)

• Current Rating: 10 Amperes

• Breaking Capacity: 10 kA at 230/240V AC, compliant with IS/IEC 60898-1

• Curve Type: C-Curve, designed for moderate inrush currents such as lighting and motor circuits

• Rated Voltage: 220–240V AC, 50/60 Hz

• Insulation Voltage: 500V AC

• Impulse Withstand Voltage: 6 kV

• Terminal Capacity: Tunnel-type terminals supporting 16mm² flexible and 25mm² rigid wires at bottom, Biconnect terminals on top

• Mounting: Clip-on 35mm DIN rail, 18mm modular width, 85mm height, and 77.5mm depth

• Mechanical and Electrical Durability: 20,000 operations

• Features: Positive contact indication for confirmed disconnection, energy limitation Class 3 for system protection, reversible line-load connection for ease of installation, fast closure mechanism, and compatibility with Schneider Acti9 system auxiliaries for advanced protection and monitoring

• Suitable Applications: Residential, commercial, and industrial electrical circuit protection requiring reliable performance and easy integration

This MCB ensures efficient, safe, and reliable circuit protection with Schneider Electric's quality standards, ideal for various electrical panel applications.
