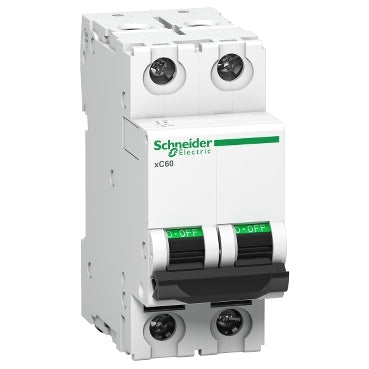

Schneider Electric Acti9 xC60 10A C-Curve Double Pole MCB, A9N2P10C, Breaking Capacity: 10 kA, (Pack of 6)

The Schneider Electric Acti9 xC60 10A C-Curve Double Pole MCB, model A9N2P10C, with a breaking capacity of 10 kA, is available in a pack of 6. Its essential specifications are:

• Poles: Double Pole (2P)

• Current Rating: 10 Amperes

• Rated Voltage: 220-240V AC, 50/60 Hz

• Breaking Capacity: 10 kA at 230/240V AC, compliant with IS/IEC 60898-1 and EN/IEC 60947-2 standards

• Curve Type: C-Curve, designed for moderate inrush currents common in lighting and motor loads

• Terminal Capability: Tunnel terminals at bottom supporting 16mm² flexible and 25mm² rigid wires; Biconnect terminals on top for easy connection

• Mounting: Clip-on 35mm DIN rail; modular width 36mm, height 85mm, depth 77.5mm

• Features: Positive contact indication (ON/OFF), energy limitation Class 3 for system protection, reversible line-load configuration, fast closure mechanism, compatibility with field-fit Schneider Acti9 auxiliaries for advanced monitoring and control

• Mechanical and Electrical Durability: 20,000 operations mechanical, 10,000 electrical

• Insulation Voltage: 500V AC

• Impulse Withstand Voltage: 6 kV

• Protection Class: IP20

• Applications: Suitable for residential, commercial, and industrial circuit protection with reliable performance and ease of integration in panels

This MCB offers robust and energy-efficient protection within a compact design, trusted for quality and safety across various electrical systems.
