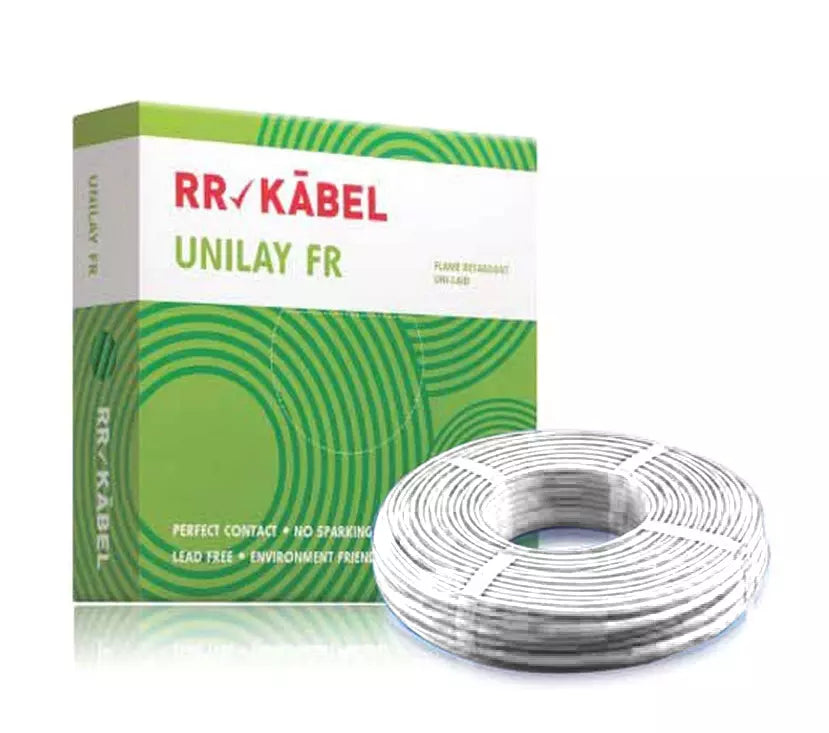

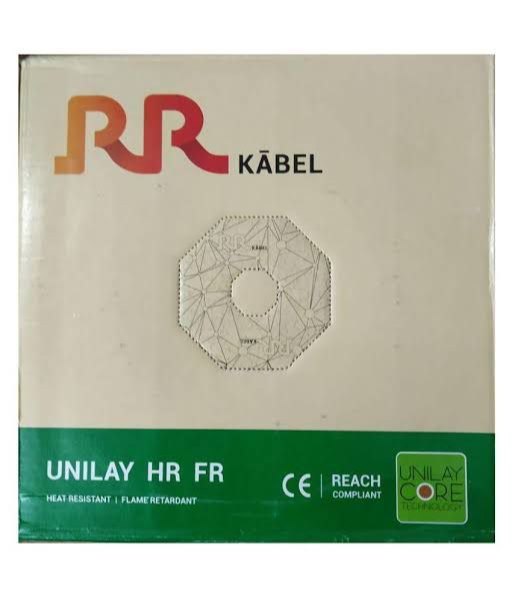

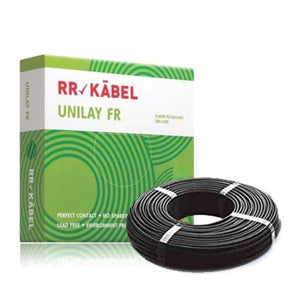

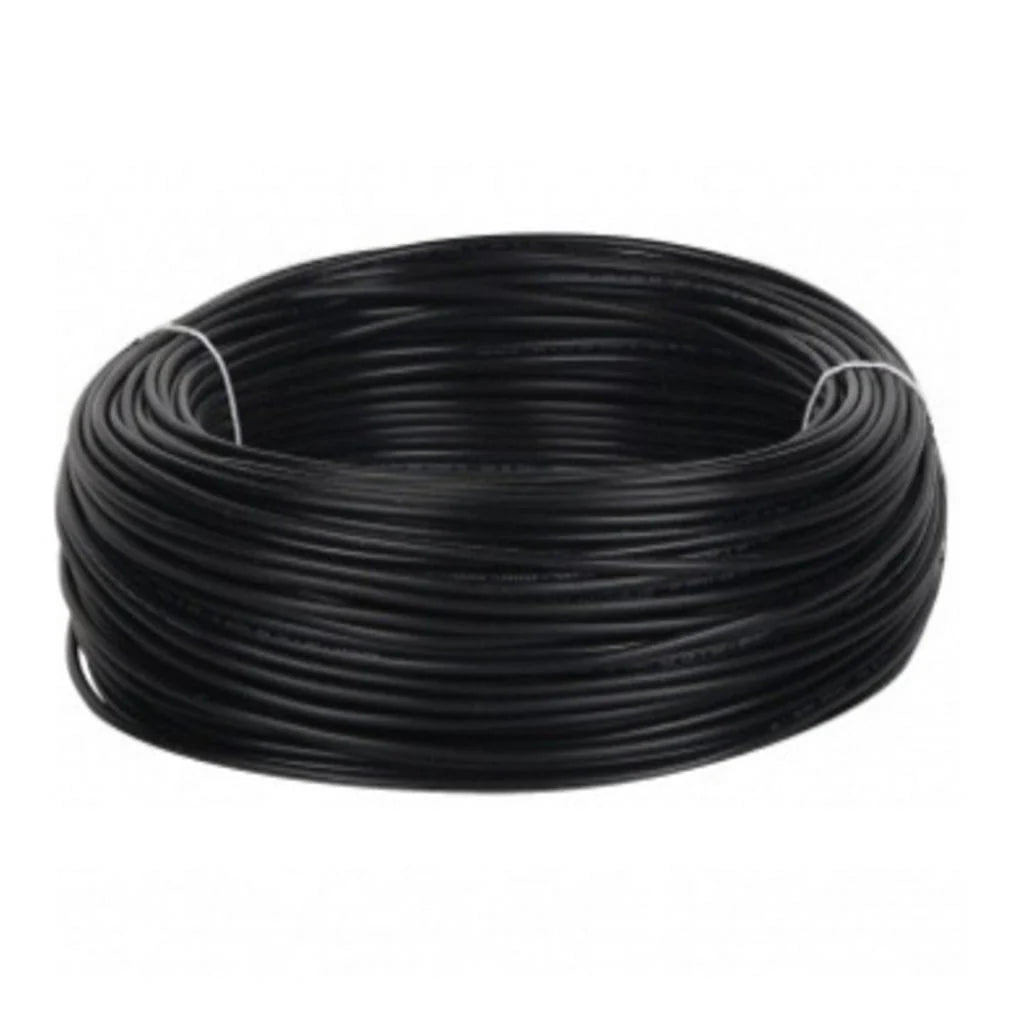

RR UNILAY HRFR 2.50 Sqmm Single Core Flexible Industrial Cable 1100V (90 MTR)

The RR UNILAY HRFR 2.50 Sqmm Single Core Flexible Industrial Cable 1100V (90 MTR) is a high-quality, heat resistant, and flame retardant copper cable with a unilay conductor, designed for industrial, commercial, and residential applications requiring safe, compact, and efficient electrical wiring.

Key Specifications

• Conductor: Unilay construction comprising 61 strands of 0.22 mm electrolytic copper for perfect circularity, enhanced flexibility, no loose contacts, and no broken ends.

• Core Size: 2.50 Sqmm single core.

• Voltage Rating: Suitable for up to and including 1100V AC.

• Insulation: Special HRFR PVC insulation conforming to IS 5831, Type C – HR 85°C + FR, offering flame retardance without compromising electrical safety.

• Nominal Insulation Thickness: 0.8 mm.

• Conductor Resistance: Approx. 7.98 Ω/km at 20°C.

• Overall Diameter: Approx. 3.6 mm.

• Current Carrying Capacity: 24A for casing wiring and 20A for concealed wiring.

• Cable Length: 90 meters per coil.

• Color Options: Available in Black, Green, Red, Blue, Yellow.

• Certifications: IS 694 marked, FIA/TAC approved, REACH, RoHS, CPR certified.
