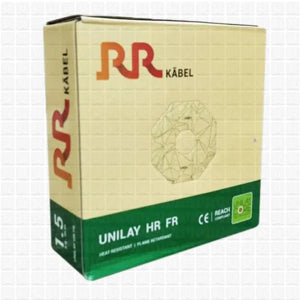

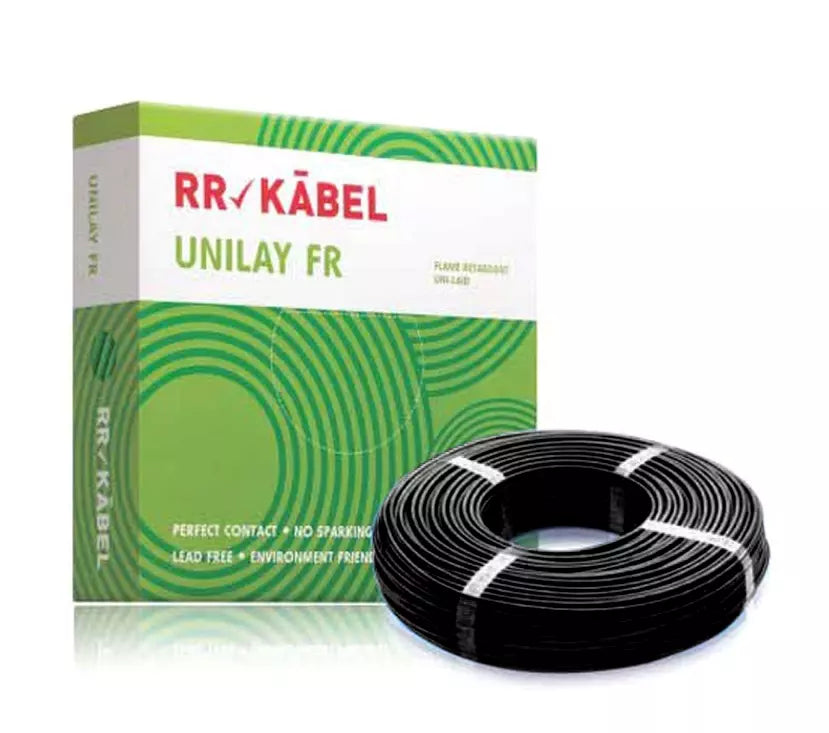

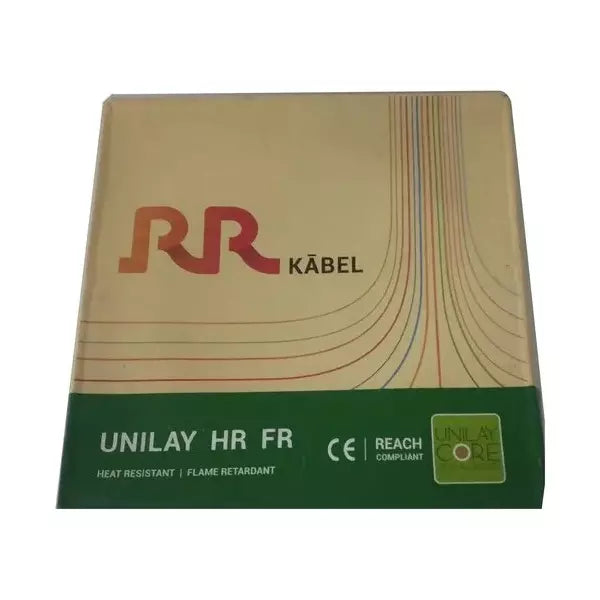

RR UNILAY HRFR 1.50 Sqmm Single Core Flexible Industrial Cable 1100V (90 MTR)

The RR UNILAY HRFR 1.50 Sqmm Single Core Flexible Industrial Cable 1100V (90 MTR) is a premium quality, heat resistant, and flame retardant single core copper cable designed for safe, compact, and efficient wiring in industrial, commercial, and residential settings.

Key Specifications

• Conductor: Unilay construction with 37 strands of 0.23 mm electrolytic copper, laid with high precision and compacted to form a perfect circular conductor for improved flexibility and space saving.

• Core Size: 1.50 Sqmm single core.

• Voltage Rating: Up to and including 1100V AC.

• Insulation: Specially formulated HRFR PVC insulation complying with IS 5831 Type C – HR 85°C + FR. It retards flame propagation without compromising electrical safety.

• Nominal Insulation Thickness: 0.7 mm.

• Conductor Resistance: Approximately 13.3 Ω/km at 20°C.

• Current Carrying Capacity: 18A (casing wiring), 16A (concealed wiring).

• Overall Diameter: About 3.0 mm.

• Cable Length: Supplied in 90-meter coils.

• Color Options: Available in black, red, yellow, blue, green, grey, and white.

• Certifications: IS 694 marked, FIA/TAC approved, REACH and RoHS compliant, CPR certified.
