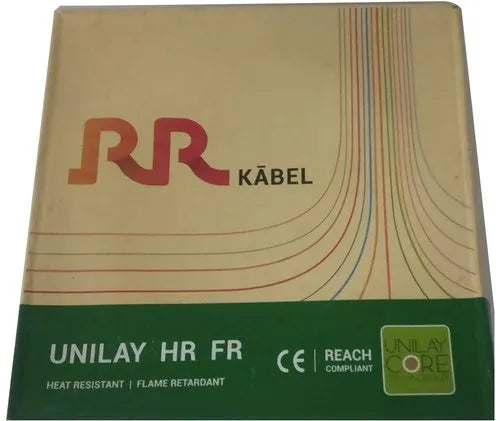

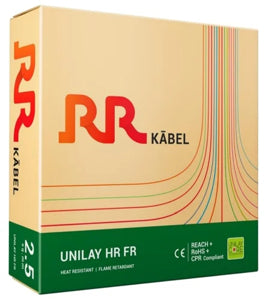

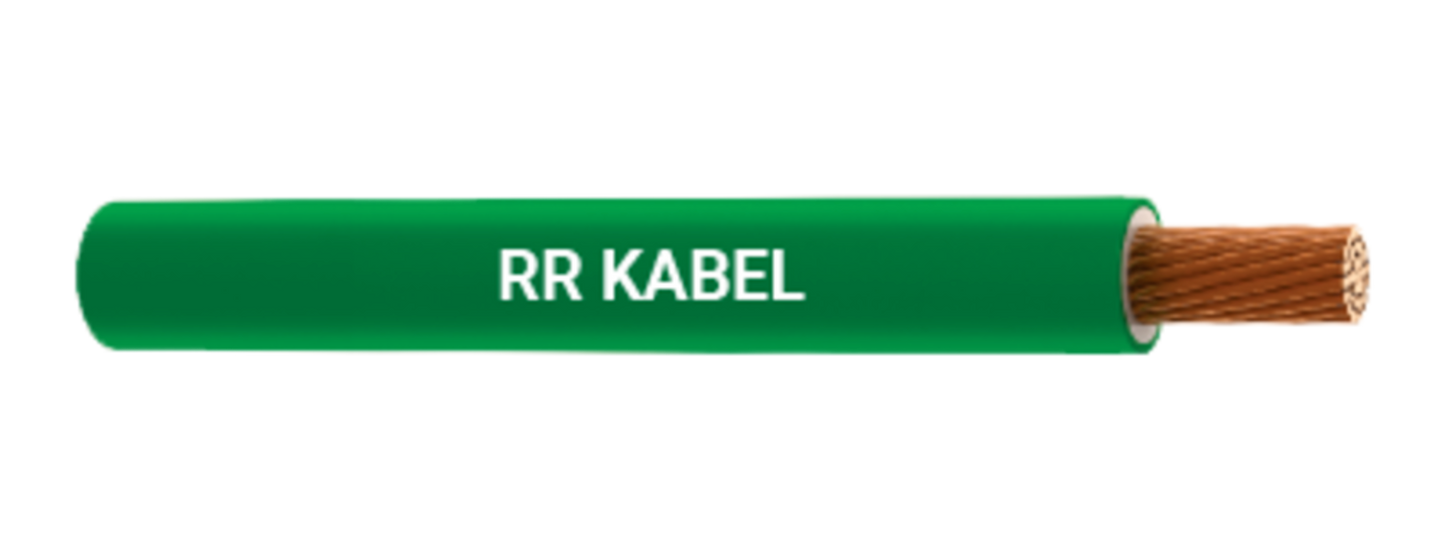

RR UNILAY HRFR 1.00 Sqmm Single Core Flexible Industrial Cable 1100V (90 MTR)

The RR UNILAY HRFR 1.00 Sqmm Single Core Flexible Industrial Cable 1100V (90 MTR) is a high-density, flexible, flame retardant and heat resistant copper cable engineered for modern industrial, residential, and commercial wiring where superior installation quality and safety are key.

Key Specifications

• Conductor: Unilay construction—37 strands of 0.19 mm electrolytic copper, precisely laid for maximum compactness and flexibility. This prevents loose contacts and broken ends, reduces sparking and overheating, and ensures perfect circularity for high density wiring.

• Core Size: 1.00 Sqmm single core flexible cable.

• Insulation: Specially formulated HRFR PVC insulation (Heat Resistant Flame Retardant) conforming to IS 5831, Type C (HR 85°C + FR), which limits flame propagation without compromising electrical integrity.

• Voltage Rating: Up to and including 1100V AC (IS 694 marked, FIA/TAC approved).

• Nominal Insulation Thickness: 0.7 mm.

• Number/Max Diameter of Strands: 37/0.19 mm.

• Overall Diameter: 2.6 mm.

• Max DC Resistance (20°C): 19.5 Ω/km.

• Current Carrying Capacity: 14A (casing wiring), 13A (concealed wiring).

• Cable Length: Supplied in 90-meter coils.

• Color Options: Available in black, green, red, blue, yellow, grey, white. Color codes provided for ordering.

• Certifications: IS 694, FIA/TAC, REACH, ROHS, CE, CPR compliant (satisfying fire resistance and chemical safety standards).
