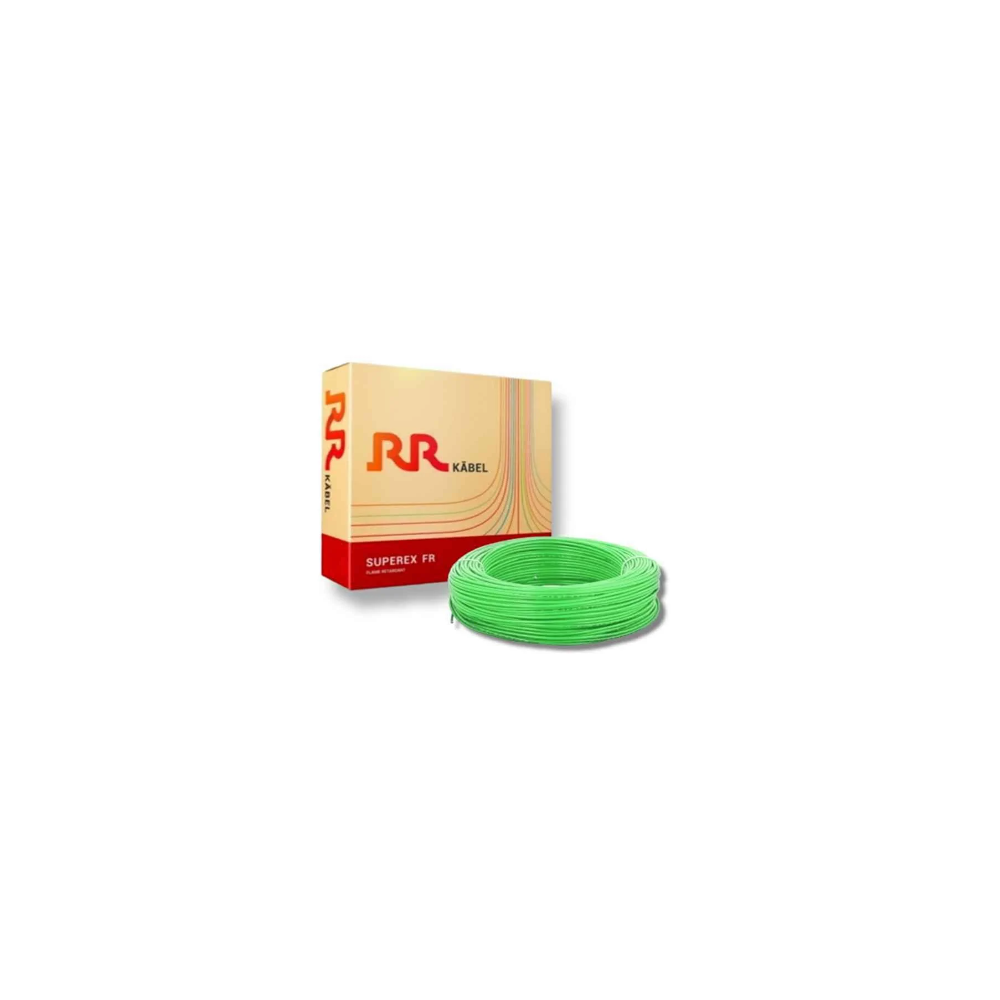

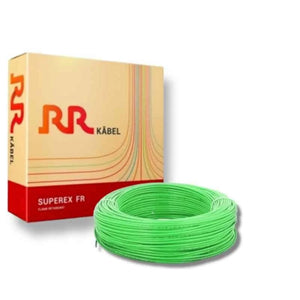

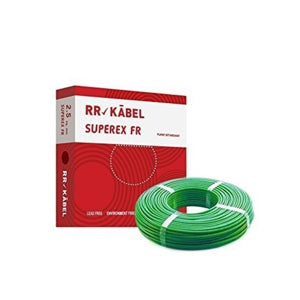

RR SUPERX GREEN HRFR 4.00 Sqmm Industrial Cable 1100V (90 MTR)

The RR SUPERX GREEN HRFR 4.00 Sqmm Industrial Cable 1100V (90 MTR) is a heat resistant and flame retardant single core copper cable designed for fixed wiring in residential, commercial, and industrial installations requiring enhanced fire safety and thermal stability.

Key Specifications

• Conductor: 56 strands of electrolytic annealed copper, Class 2 flexible conductor conforming to IS 8130 standards for conductivity and flexibility.

• Core Size: 4.00 Sqmm single core cable.

• Insulation: Heat Resistant and Flame Retardant (HRFR) PVC insulation engineered for an operating temperature up to 85°C with flame retardant properties conforming to IS 5831 Type C – HR 85°C + FR.

• Voltage Rating: Rated for use up to and including 1100V AC.

• Insulation Thickness: Approx. 0.8 mm.

• Overall Diameter: Approx. 4.1 mm.

• Resistivity: Maximum DC resistance approximately 4.95 Ω/km at 20°C.

• Current Carrying Capacity: Rated for about 26-30A, depending on casing/concealed wiring installation as per IS 3961 standards.

• Cable Length: Supplied in 90-meter coils.

• Color: Green for clear identification and safety emphasis.

• Certifications: IS 694 marked, FIA/TAC approved, compliant with global standards including RoHS and REACH.
