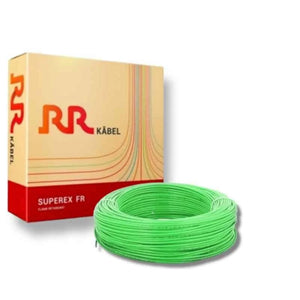

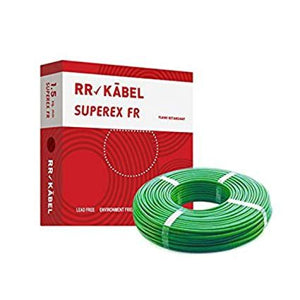

RR SUPERX GREEN HRFR 2.50 Sqmm Industrial Cable 1100V (90 MTR)

The RR SUPERX GREEN HRFR 2.50 Sqmm Industrial Cable 1100V (90 MTR) is a superior heat resistant and flame retardant single core cable designed for industrial, commercial, and residential fixed wiring applications needing high safety and thermal endurance.

Key Specifications

• Conductor: Thin strands of electrolytic copper (36 strands of 0.31 mm diameter), Class 2 conductor meeting IS 8130 standards for flexibility and conductivity.

• Core Size: 2.5 Sqmm single core cable suitable for power distribution and control wiring.

• Insulation: High-grade Heat Resistant and Flame Retardant PVC insulation conforming to IS 5831 Type C (HR 85°C + FR), engineered for elevated temperature tolerance and flame retardance.

• Voltage Rating: Rated up to 1100V AC, making it suitable for low tension installations.

• Insulation Thickness: Approximately 0.8 mm.

• Overall Diameter: About 3.7 mm.

• Max DC Conductor Resistance: 7.41 Ω/km at 20°C.

• Current Carrying Capacity: About 26A for casing wiring and 22A for concealed wiring installations.

• Cable Length: Supplied as 90-meter coils for convenient installation.

• Color: Green, reflecting an emphasis on safety and environmental consciousness.

• Certifications: IS 694 marked, FIA/TAC approved, REACH, RoHS, and CE compliant ensuring adherence to global safety and environmental standards.
