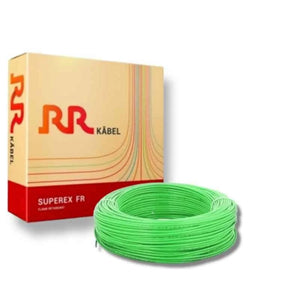

RR SUPERX GREEN HRFR 1.50 Sqmm Industrial Cable 1100V (90 MTR)

The RR SUPERX GREEN HRFR 1.50 Sqmm Industrial Cable 1100V (90 MTR) is a heat resistant and flame retardant single core cable designed for safe and reliable wiring in residential, commercial, and industrial fixed wiring applications.

Key Specifications

• Conductor: Thin strands of electrolytic copper, multi-drawn for uniform resistance, dimension, and flexibility (22 strands of 0.31 mm diameter), Class 2 conductor as per IS 8130.

• Core Size: 1.5 Sqmm single core cable.

• Insulation: High-grade Heat Resistant and Flame Retardant PVC insulation engineered to withstand temperatures up to 85°C and retard flame spread; conforms to IS 5831 Type C – HR 85°C + FR.

• Voltage Rating: Up to and including 1100V AC, suitable for fixed wiring installation.

• Insulation Thickness: Approximately 0.7 mm nominal.

• Overall Diameter: Approx. 3 mm.

• Maximum DC Conductor Resistance: About 12.1 Ω/km at 20°C.

• Current Carrying Capacity: Around 18A (casing wiring) and 16A (concealed wiring), following IS 3961 standards.

• Cable Length: 90 meters per coil supplied in protective cartons.

• Colors Available: Green (distinctive for safety and environmental purposes), also available in red, yellow, blue, black, grey, and white.

• Certification: IS 694 marked, FIA/TAC approved, REACH and RoHS compliant regulatory adherence.
