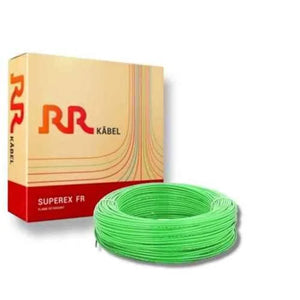

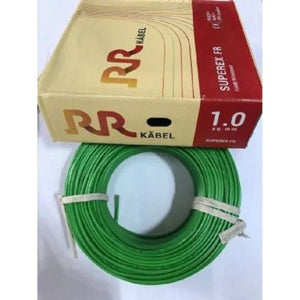

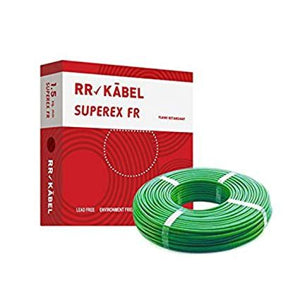

RR SUPERX GREEN HRFR 1.00 Sqmm Industrial Cable 1100V (90 MTR)

The RR SUPERX GREEN HRFR 1.00 Sqmm Industrial Cable 1100V (90 MTR) is a high-quality heat resistant and flame retardant cable from RR Kabel designed for safe indoor and industrial wiring where enhanced fire safety and thermal endurance are critical.

Key Specifications

• Conductor: Multistranded electrolytic copper (14 strands of 0.31 mm), Class 2 conductor as per IS 8130 for good conductivity and flexibility.

• Core Size: 1.00 Sqmm single core.

• Insulation: Heat Resistant + Flame Retardant (HRFR) PVC insulation, engineered to resist elevated temperatures and retard flame spread. Insulation conforms to IS 5831 Type C at 85°C plus flame retardant properties.

• Voltage Rating: Rated up to 1100V AC, suitable for fixed wiring in residential, commercial, and industrial applications.

• Nominal Insulation Thickness: Approximately 0.6 mm.

• Overall Diameter: Approx. 2.6 mm.

• Maximum DC Conductor Resistance: About 18.1 Ω/km at 20°C.

• Current Carrying Capacity: Around 15-16A depending on installation conditions (casing and concealed).

• Cable Length: 90 meters per coil, packed for convenient site installation.

• Colors Available: Green (distinctive for safety and environmental awareness).

• Certifications: IS 694 marked, FIA/TAC approved, REACH and RoHS compliant ensuring environmental safety standards.
