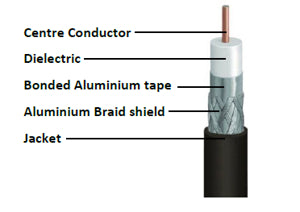

RR RATNA CO-X RG 59 F ALUMINUM MYLAR TAPE JELLY FLOODED PVC CABALES

RR RATNA CO-X RG 59 F ALUMINUM MYLAR TAPE JELLY FLOODED PVC CABALES

Rs. 1,385.04
Rs. 2,388.00 Rs. 1,385.04
Sale Sold out
Length
The RR RATNA CO-X RG 59 F cable is a high-quality coaxial cable designed for cable TV networks and similar applications, providing low attenuation across a wide frequency range. It features aluminum mylar tape screening and a jelly-flooded PVC jacket for durability and protection, especially in outdoor and rugged conditions.

Key Specifications

  • Cable type: RG 59 F (Coaxial)

  • Inner conductor: Solid electrolytic grade annealed plain copper, 0.8 mm nominal diameter

  • Insulation: Foam PE (Polyethylene) with a nominal thickness of 3.5 mm

  • Screening: Bonded aluminum mylar tape (first layer)

  • Braiding: Tinned copper or aluminum alloy, approx. 60% coverage

  • Jelly flooded: Yes, for water/moisture resistance

  • Jacket: Specially formulated black PVC, suitable for outdoor application

  • Nominal cable diameter: 10.5 mm (armoured version)

  • Characteristic impedance: 75 Ω

  • Capacitance: Approximately 53 pF/m

  • Maximum conductor resistance at 20°C: 3.43 Ω/100m

  • Minimum bending radius: 60 mm

  • Attenuation (dB/100m, max.):
