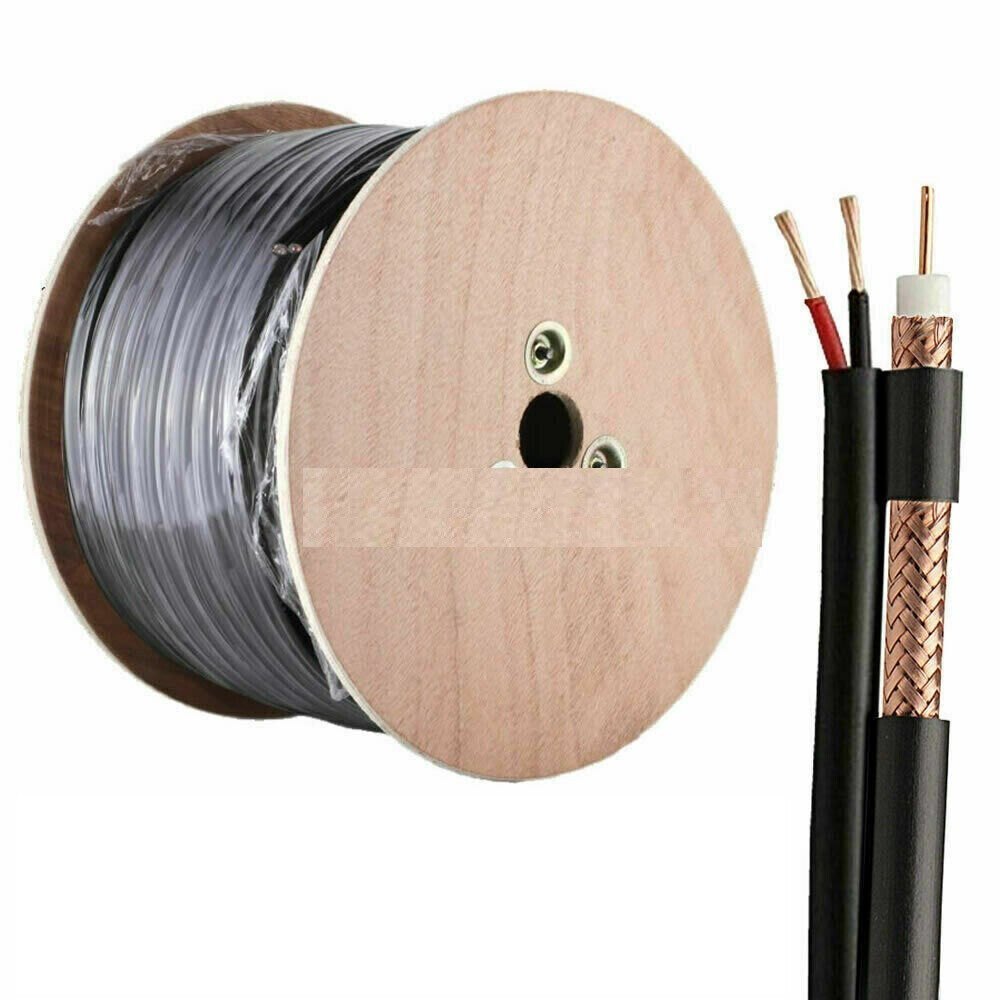

RR RATNA CO-X RG 11 F ALUMINUM MYLAR TAPE JELLY FLOODED PVC CABALES

The RR RATNA CO-X RG 11 F cable is a high-quality coaxial cable designed for reliable signal transmission in cable TV, CCTV, and other RF communication applications.

Here are the detailed specifications:

• Cable Type: RG 11 F (Coaxial, armoured type)

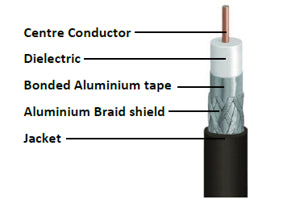

• Conductor: Solid electrolytic grade annealed plain copper with a nominal diameter of 1.63 mm

• Insulation: Foam polyethylene (PE) with a nominal diameter of 7.0 mm

• Screening: Bonded aluminum mylar tape for shielding the insulated conductor

• Braiding: Annealed tinned copper (ATC) or aluminum alloy braid with about 60% coverage

• Jacket: Specially formulated rugged outdoor black PVC jacket

• Nominal Cable Diameter: Approximately 10.0 to 14.6 mm (depending on armouring)

• Characteristic Impedance: 75 Ω

• Capacitance: Nominal 53 pF/m

• Velocity of Propagation: 85%

• Dielectric Strength: Greater than 1 kV

• Minimum Bending Radius: Around 75 mm

• Maximum Attenuation at 20°C (dB per 100m):
