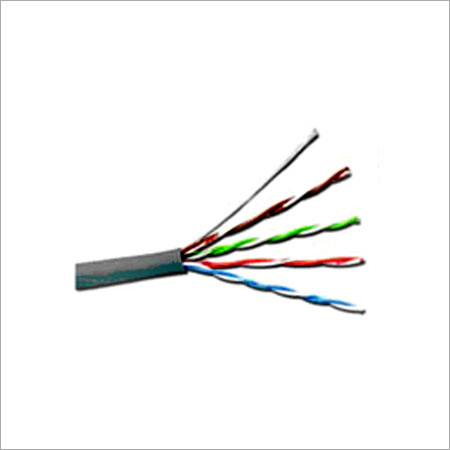

RR RATNA CAT 5e (UTP) PVC LAN CABALES

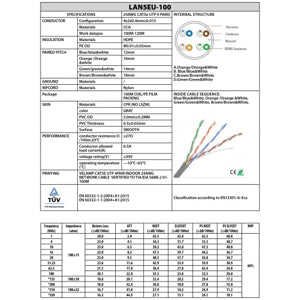

Key specifications:

• Cable Type: CAT 5e UTP (Unshielded Twisted Pair)

• Conductor: Solid bare copper, 24 AWG

• Insulation: High-density polyethylene (HDPE)

• Number of Pairs: 4 pairs (8 conductors) twisted pair configuration

• Outer Jacket: Flame retardant (FR) PVC

• Color coding of pairs: Standardized (White-Orange/Orange, White-Green/Green, White-Blue/Blue, White-Brown/Brown)

• Standards: Exceeds EN 50173, ISO/IEC 11801, TIA/EIA 568-B-1/B-2

• Maximum Tensile Load: 10 Kgs per cable during installation

• Minimum Bend Radius: 8 times cable diameter during installation; 4 times during operation

• Temperature Range: Installation 0°C to 50°C, Operation -10°C to 60°C

• Electrical properties: Conductor loop resistance max 190 Ω/100m, dielectric strength 1.0 kV DC (1 minute), insulation resistance >500 MΩ/km

• Packing: Available in easy pull boxes of 101 meters and 305 meters
