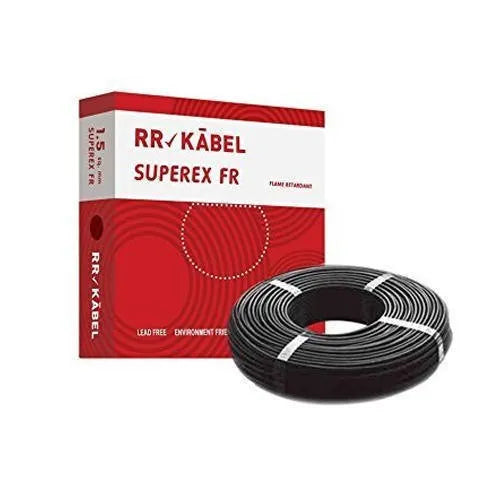

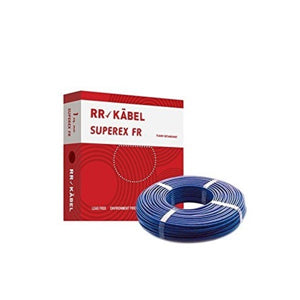

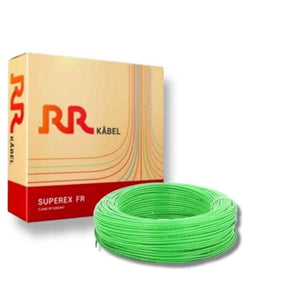

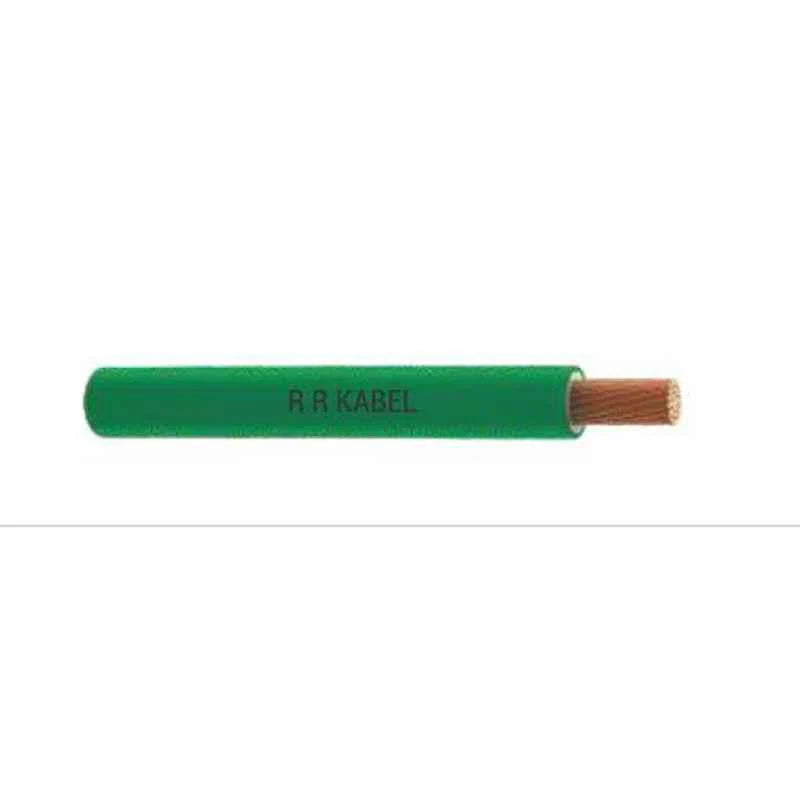

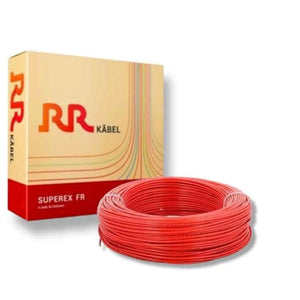

RR FR 6.00 Sqmm Single Core Flexible Cable 1100 V (90 MTR)

The RR FR 6.00 Sqmm Single Core Flexible Cable 1100 V (90 MTR) from RR Kabel is a high-quality flame retardant, flexible copper cable designed for safe, durable electrical wiring in residential, commercial, and industrial installations where fire safety and flexibility are important.

Key Specifications

• Conductor: Flexible electrolytic annealed plain copper, Class 5 conductor as per IS 8130, consisting of 84 strands of 0.30 mm diameter for excellent flexibility and conductivity.

• Core Size: 6.00 Sqmm single core.

• Insulation: Flame retardant PVC insulation complying with IS 5831, designed to limit flame spread and enhance wiring safety.

• Voltage Rating: Rated for up to and including 1100V AC.

• Nominal Insulation Thickness: Approximately 0.8 mm.

• Overall Diameter: 5.3 mm approx.

• Current Carrying Capacity: Approximately 38 A under typical installation conditions.

• Temperature Range: Operating temperature range of -15°C to +70°C; short circuit temperature rating up to 160°C.

• Cable Length: Supplied in 90-meter coils with protective packaging.

• Color Options: Available in multiple colors with standardized suffix codes for identifying colors such as black, green, red, blue, etc.

• Certifications: IS 694 marked, FIA/TAC approved, REACH and RoHS compliant, CPR (Construction Product Regulation) certified.

• Product Codes: Part numbers have suffixes to specify insulation colors (e.g., 01 = green, 02 = black, 03 = red, etc.).
