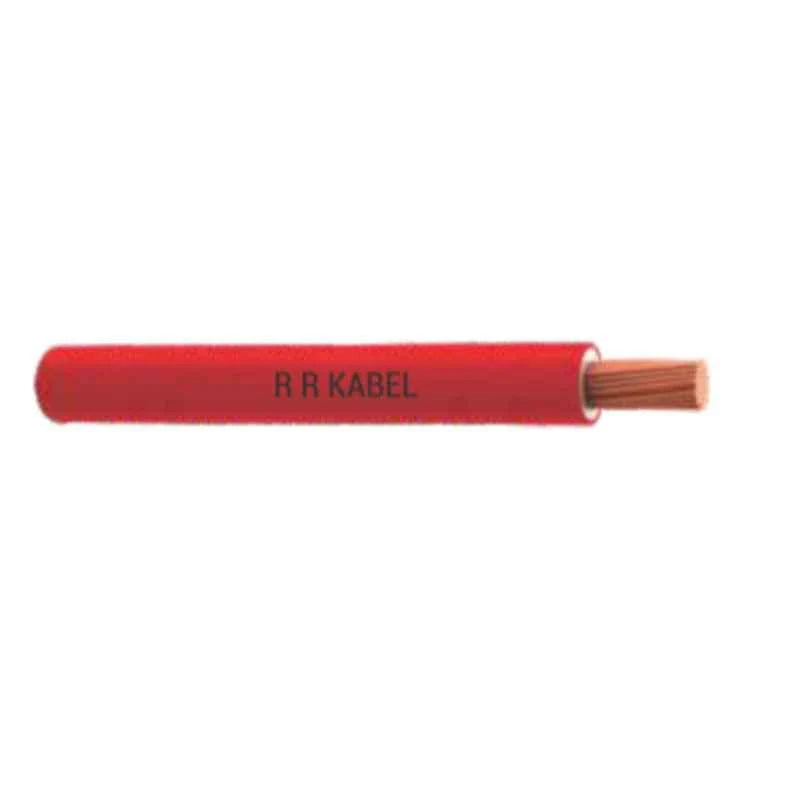

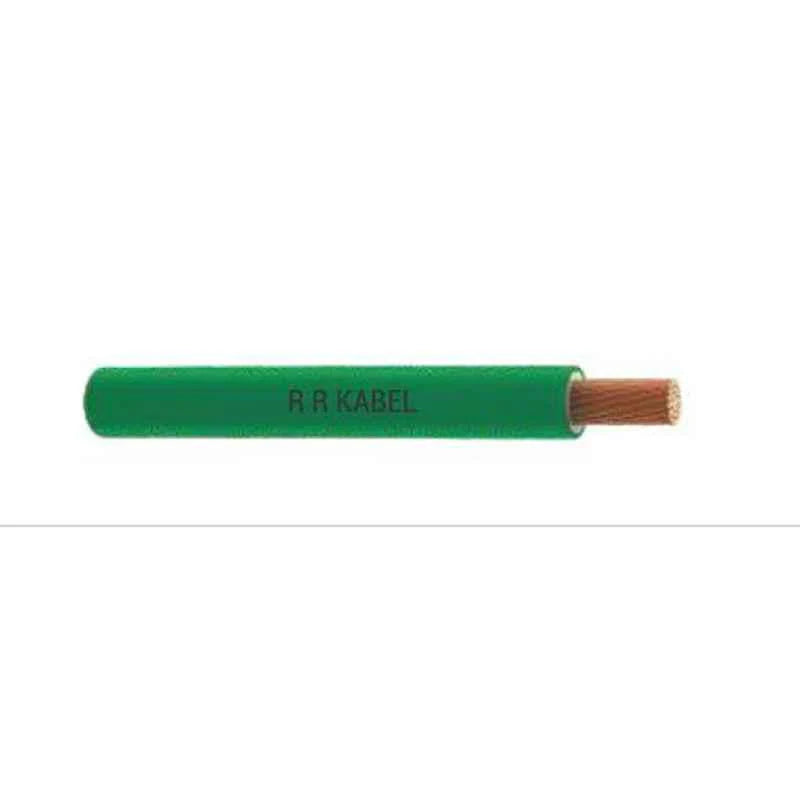

RR FR 4.00 Sqmm Single Core Flexible Cable 1100 V (90 MTR)

The RR FR 4.00 Sqmm Single Core Flexible Cable 1100 V (90 MTR) from RR Kabel is a flexible, flame retardant PVC insulated copper cable designed for residential, commercial, and industrial fixed wiring requiring safety and durability.

Key Specifications

• Conductor: Flexible electrolytic annealed copper, Class 5 as per IS 8130, typically consisting of 56 strands of 0.30 mm diameter for optimum flexibility and conductivity.

• Core Size: 4.00 Sqmm single core.

• Insulation: Flame Retardant PVC insulation conforming to IS 5831, designed to reduce flame spread and provide excellent electrical insulation.

• Voltage Rating: Rated for up to and including 1100V AC.

• Insulation Thickness: Approximately 0.8 mm.

• Overall Diameter: About 4.8 mm.

• Current Carrying Capacity: Around 30 A depending on installation scenario.

• Temperature Range: Operates safely from -15°C up to +70°C with a short circuit temperature rating up to 160°C.

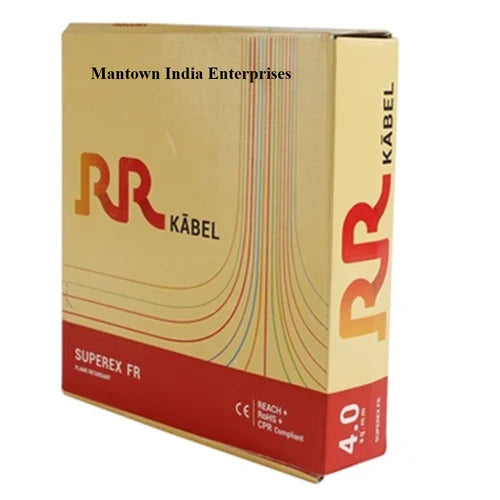

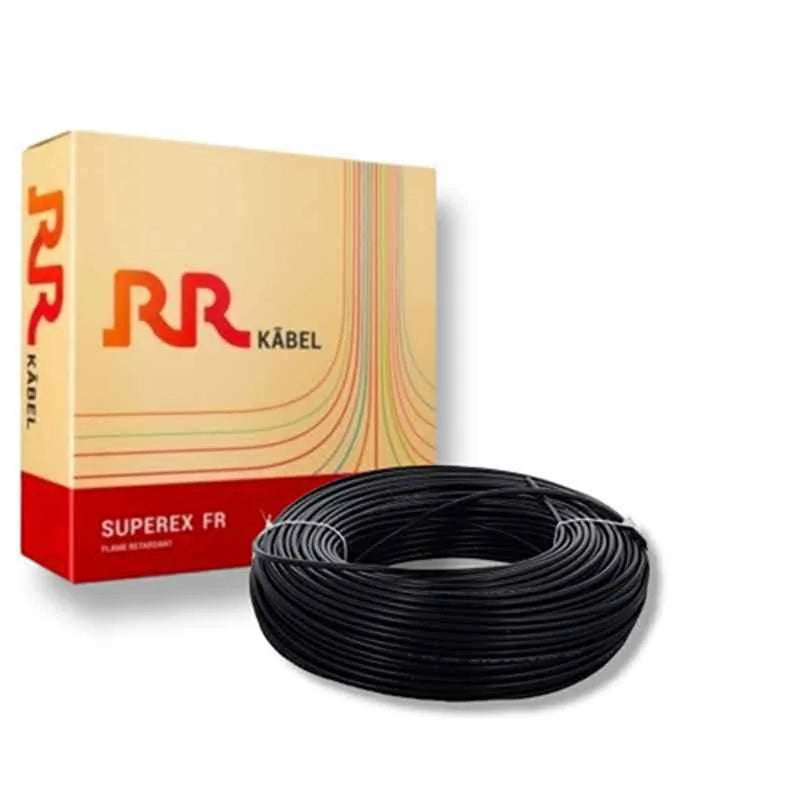

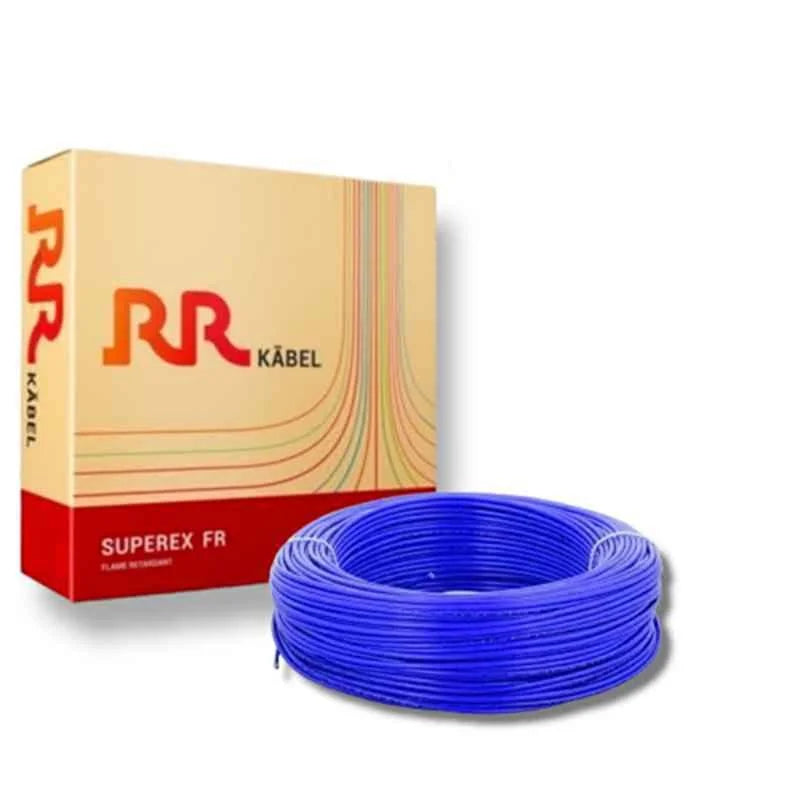

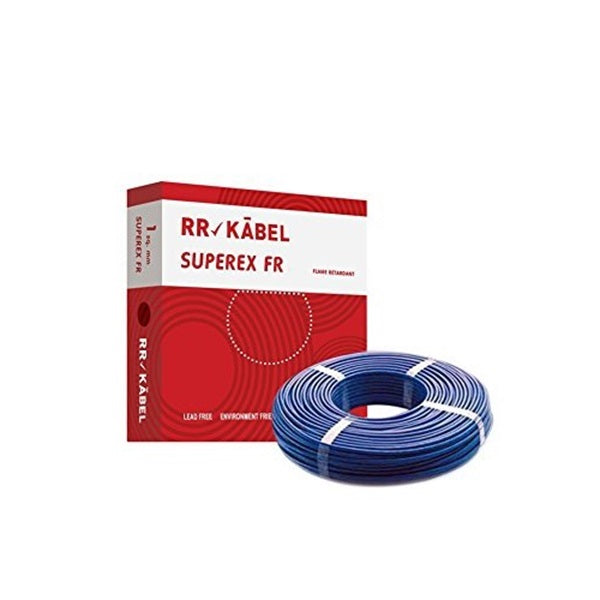

• Cable Length: Supplied in 90-meter coils packaged for ease of handling.

• Color Options: Available in multiple colors including green, black, red, yellow, blue, grey, and white.

• Certifications: IS 694 marked, FIA/TAC approved, REACH and RoHS compliant, CPR certified.
