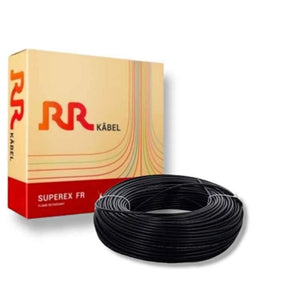

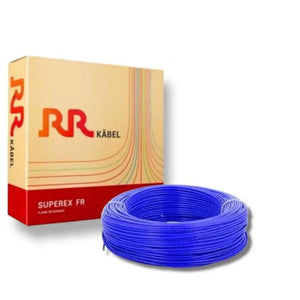

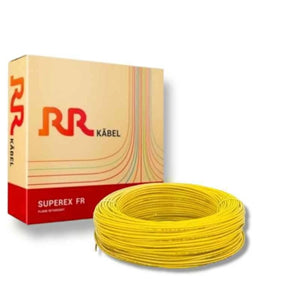

RR FR 2.50 Sqmm Single Core Flexible Cable 1100 V (90 MTR)

The RR FR 2.50 Sqmm Single Core Flexible Cable 1100 V (90 MTR) from RR Kabel is a flexible, flame retardant single core copper cable designed for use in industrial, commercial, and residential electrical wiring where flexibility and fire safety are essential.

Key Specifications

• Conductor: Flexible electrolytic annealed plain copper, Class 5 conductor as per IS 8130, consisting of 50 strands of 0.25 mm diameter for enhanced flexibility.

• Core Size: 2.5 Sqmm single core.

• Insulation: Flame Retardant (FR) PVC insulation complying with IS 5831, engineered to retard flame propagation and provide reliable insulation.

• Voltage Rating: Rated for up to and including 1100V AC.

• Nominal Insulation Thickness: Approximately 0.8 mm.

• Maximum Diameter Over Insulation: Approximately 4.1 mm.

• Current Carrying Capacity: Around 24 A in typical installation conditions.

• Temperature Range: -15°C to +70°C operating temperature, with short circuit temperature rating up to 160°C.

• Cable Length: 90 meters per coil for convenient installation.

• Color Coding: Available in multiple standard colors for easy identification; suffix codes are used to specify color in orders.

• Certifications: IS 694 marked, FIA/TAC approved, complies with RoHS and REACH environmental safety standards.
