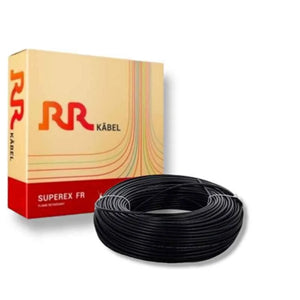

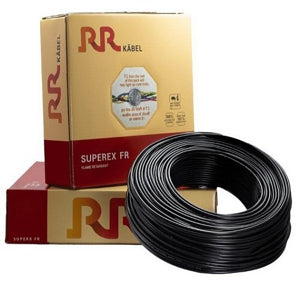

RR FR 1.50 Sqmm Single Core Flexible Cable 1100 V (90 MTR)

The RR FR 1.50 Sqmm Single Core Flexible Cable 1100 V (90 Mtr) from RR Kabel is a flexible, flame retardant single core copper cable designed for versatile use in industrial, commercial, and residential wiring where safety and flexibility are important.

Key Specifications

• Conductor: Flexible electrolytic annealed plain copper, Class 5 per IS 8130, with approximately 30 strands of 0.25 mm diameter.

• Core Size: 1.5 Sqmm single core.

• Insulation: Flame Retardant (FR) PVC insulation conforming to IS 5831, engineered to limit flame spread and provide electrical insulation.

• Voltage Rating: Rated for use up to and including 1100V AC.

• Nominal Insulation Thickness: About 0.7 mm.

• Maximum Diameter Over Insulation: Approximately 3.4 mm.

• Current Carrying Capacity: Approximately 17 A under standard installation conditions.

• Temperature Range: Typically -15°C to +70°C operating temperatures.

• Cable Length: Supplied in 90-meter coils, packed for ease of installation.

• Color Coding: Available in multiple colors with suffix codes for identification.

• Certifications: IS 694 marked, FIA/TAC approved, compliant with REACH and RoHS environmental standards.
