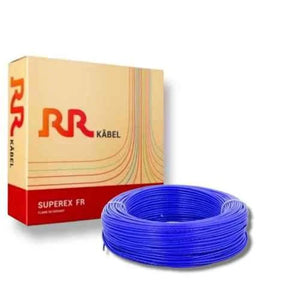

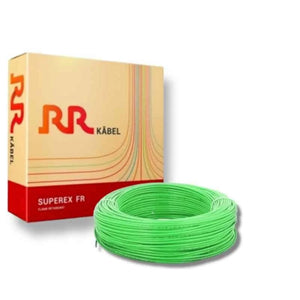

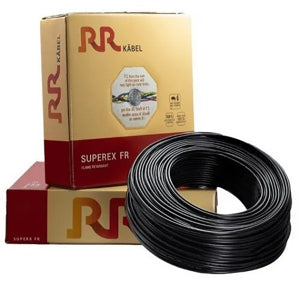

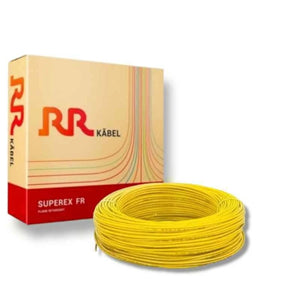

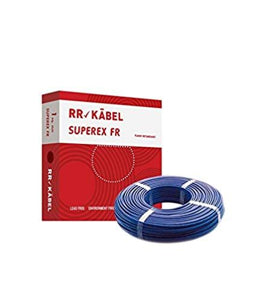

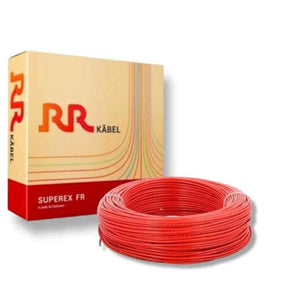

RR FR 1.00 Sqmm Single Core Flexible Cable 1100 V (90 MTR)

The RR FR 1.00 Sqmm Single Core Flexible Cable 1100 V (90 Mtr) from RR Kabel is a flexible, flame retardant PVC insulated cable designed for safe and durable low tension wiring in residential, commercial, and industrial applications.

Key Specifications

• Conductor: Flexible electrolytic annealed plain copper, Class 5 as per IS 8130, consisting of 32 strands of 0.2 mm diameter each for optimum flexibility.

• Core Size: 1.00 Sqmm single core.

• Insulation: Flame Retardant (FR) PVC complying with IS 5831 standard, designed to reduce flame spread and improve wiring safety.

• Voltage Rating: Up to and including 1100V AC.

• Temperature Range: -15°C to +70°C normal operating temperature; short circuit temperature rating at 160°C.

• Nominal Insulation Thickness: Approximately 0.6 mm.

• Maximum Diameter Over Insulation: 3.0 mm.

• Current Carrying Capacity: Approximately 13 A as per installation conditions.

• Cable Length: Supplied in 90-meter recoiled packs with protective packaging for easy handling.

• Color Options for Identification: Multiple colors available with suffix codes (e.g., 01 for green, 02 for black, 03 for red, etc.).

• Certifications: IS 694 marked, FIA/TAC approved, compliant with REACH and RoHS environmental standards.
