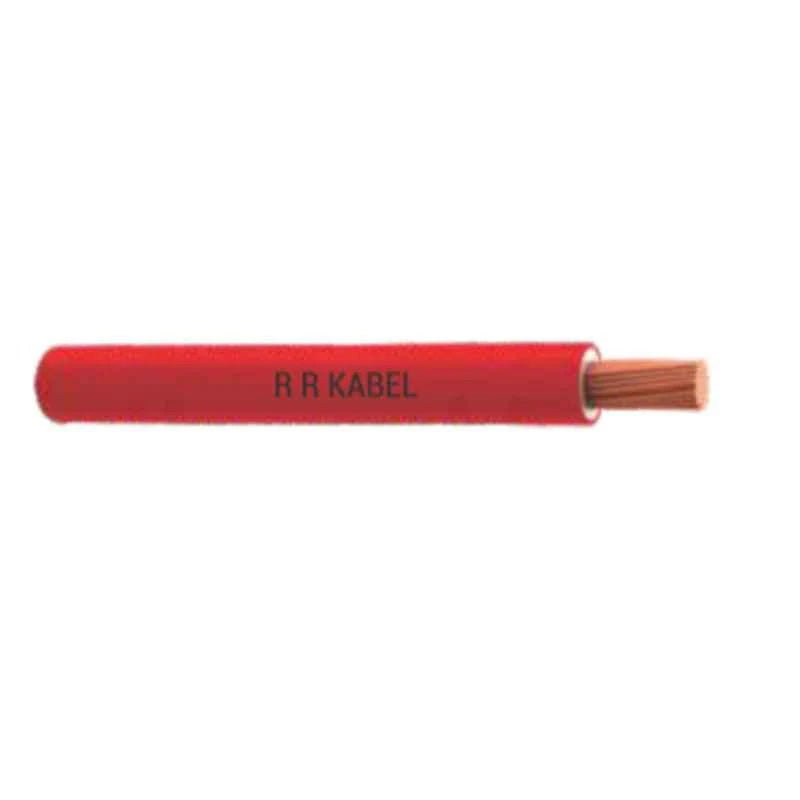

RR FR 0.75 Sqmm Single Core Flexible Cable 1100 V (90 MTR)

The RR FR 0.75 Sqmm Single Core Flexible Cable 1100 V (90 Mtr) from RR Kabel is a high-quality flexible copper cable with flame retardant PVC insulation, designed for reliable power transmission and versatile wiring applications in industrial, commercial, and residential settings.

Key Specifications

• Conductor: Flexible electrolytic annealed plain copper, Class 5 conductor as per IS 8130, ensuring excellent flexibility and conductivity.

• Core Size: 0.75 Sqmm single core.

• Voltage Rating: Rated for up to and including 1100V AC, suitable for low tension electrical wiring.

• Insulation: PVC with flame retardant properties (FR), designed to limit flame spread and improve safety.

• Cable Length: Supplied in 90-meter coils.

• Temperature Range: Operates typically between -15°C and +70°C.

• Nominal Insulation Thickness: About 0.6 mm.

• Overall Diameter: Approximately 2.8 mm.

• Current Carrying Capacity: Around 8A (dependent on installation conditions).

• Certifications: IS 694 marked, FIA/TAC approved, RoHS and REACH compliant.

• Color Options: Available in multiple colors including green, black, red, blue, yellow, grey, white, and others with clear color coding for easy identification.
