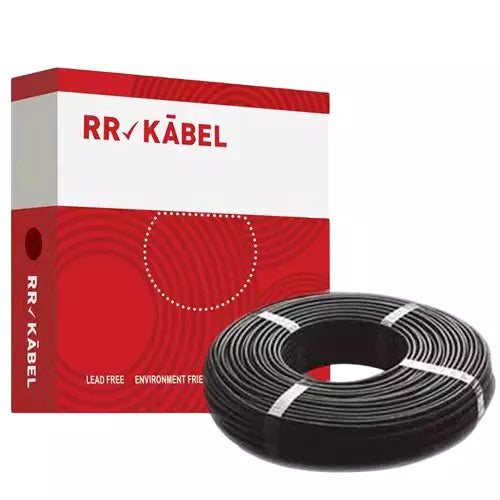

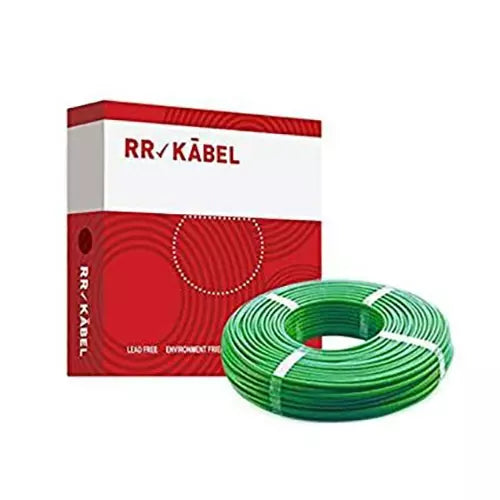

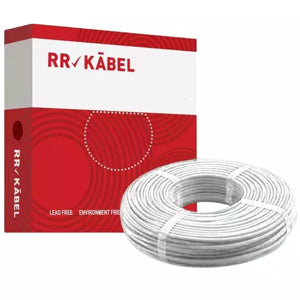

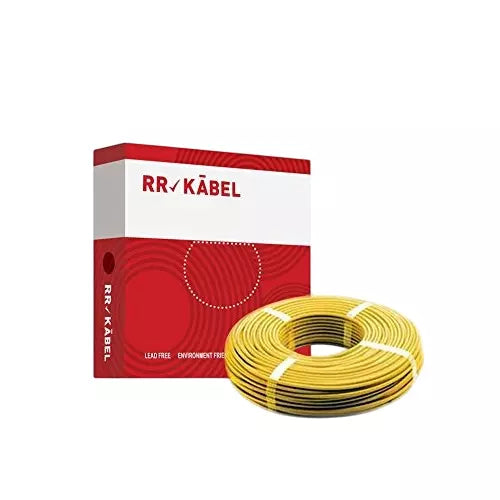

RR EBXL 6.00 Sqmm HFFR Single Core Copper Industrial Cable (90 Mtr)

The RR EBXL 6.00 Sqmm HFFR Single Core Copper Industrial Cable (90 Mtr) is a high-quality halogen-free flame retardant cable designed for demanding industrial and commercial applications where fire safety and performance are critical.

Key Specifications

• Conductor: 84 strands of electrolytic annealed plain copper, Class 5 flexible conductor per IS 8130 standards for flexibility and conductivity.

• Core Size: 6.00 Sqmm single core, suitable for heavy-duty power, industrial, and control circuit wiring.

• Cable Length: Typically supplied in 90-meter coils.

• Insulation: Electron Beam Cross-linked Halogen Free Flame Retardant (HFFR), labeled as LS0H-EBXL or Firex LSOH, providing non-toxic, non-corrosive, and fire-retardant properties.

• Insulation Thickness: About 0.8 mm nominal.

• Overall Diameter: Approximately 5.3 to 5.4 mm.

• Voltage Rating: Up to and including 1100 volts AC.

• Conductor Resistance: Around 3.3 Ω/km at 20°C.

• Current Carrying Capacity: Approximately 59A depending on the installation conditions.

• Temperature Range: Operational from -25°C to +110°C; short circuit rating up to 300°C.

• Flame Retardance: Self-extinguishing per IS 10810 P – 61; negligible smoke and zero halogen emission during fire.

• Additional Properties: UV resistant, anti-rodent, abrasion-resistant, suitable for long life and harsh conditions.
