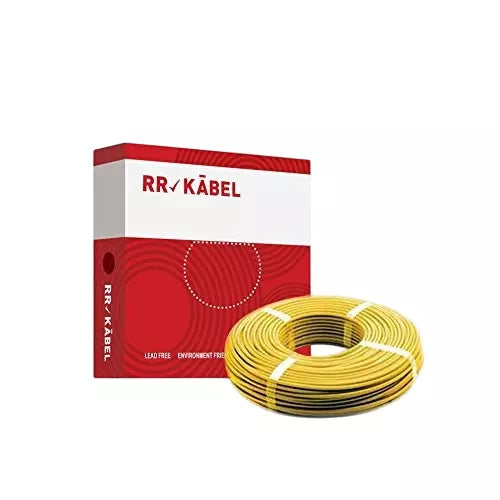

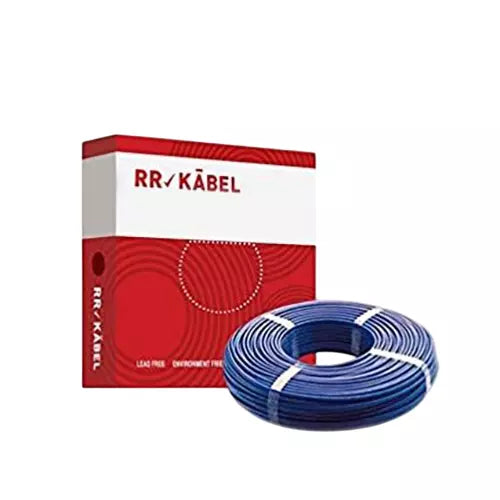

RR EBXL 4.00 Sqmm HFFR Single Core Copper Industrial Cable (90 Mtr)

The RR EBXL 4.00 Sqmm HFFR Single Core Copper Industrial Cable (90 Mtr) is a robust halogen-free flame retardant cable designed for industrial and building wiring where safety and performance under fire conditions are critical.

Key Specifications

• Conductor: 56 strands of electrolytic annealed copper, Class 5 flexible conductor as per IS 8130, ensuring high conductivity and flexibility.

• Core Size: 4.00 Sqmm single core, ideal for power and control wiring applications.

• Cable Length: Usually supplied in 90 meters coils, convenient for site installation.

• Insulation: Electron Beam Cross-linked Halogen Free Flame Retardant (HFFR) E-Beam XL HFI-XL 90 compound that is non-toxic, low smoke, and fire retardant, meeting IS 17048 and IS 10810 P-61 standards.

• Insulation Thickness: Approximately 0.8 mm.

• Overall Diameter: ~4.1 mm.

• Voltage Rating: Up to and including 1100V AC.

• Maximum DC Conductor Resistance: About 4.95 Ω/km at 20°C.

• Current Carrying Capacity: Around 46A depending on installation and ambient conditions.

• Temperature Range: From -25°C to +110°C operational; short circuit temperature rating up to 300°C.

• Flame Retardance: Self-extinguishing, with negligible smoke emission and zero halogen release.

• Other Features: UV resistant, abrasion resistant, anti-rodent and termite proof for extended service life.
