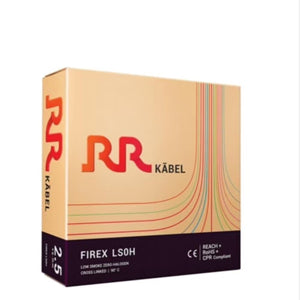

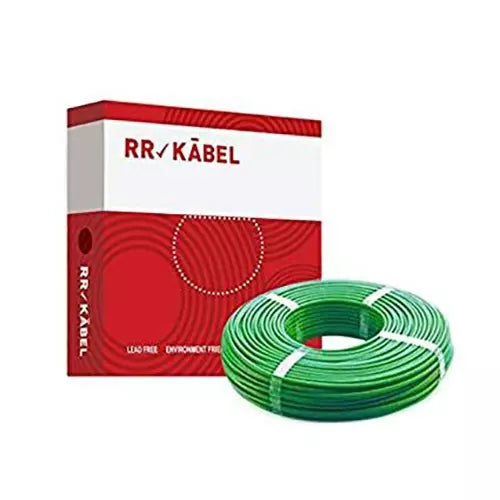

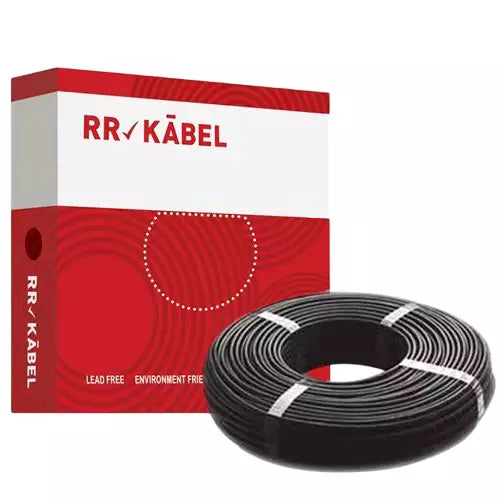

RR EBXL 2.50 Sqmm HFFR Single Core Copper Industrial Cable (90 Mtr)

The RR EBXL 2.50 Sqmm HFFR Single Core Copper Industrial Cable (90 Mtr) is a highly reliable halogen-free flame retardant cable designed for use in safety-critical commercial and industrial environments. It provides low smoke emission and zero halogen in the event of fire, meeting strict fire safety standards.

Key Specifications

• Conductor: Multi-stranded electrolytic annealed plain copper (50 strands of 0.25 mm diameter), Class 5 flexible conductor as per IS 8130.

• Core Size: 2.5 Sqmm single core cable suitable for power, control, and industrial wiring.

• Length: Typically supplied in 90 meter coils suitable for site use.

• Insulation: Electron Beam Cross-linked Halogen Free Flame Retardant (HFFR), E-Beam XL HFI-XL 90 compound that is non-toxic, non-corrosive, and highly fire resistant.

• Insulation Thickness: Approximately 0.7 mm.

• Voltage Rating: Up to and including 1100V AC.

• Current Carrying Capacity: Approximately 34A, depending on installation and ambient conditions.

• Temperature Range: Operational from -25°C to +110°C; short circuit temperature rating up to 300°C.

• Conductor Resistance: About 7.98 Ω/km at 20°C.

• Flame Retardance: Self-extinguishing and flame retardant per IS 10810 P – 61; minimal smoke with zero halogen emission.

• Additional Features: UV resistant, anti-rodent, abrasion resistant, chemical resistant, suitable for long-term use with extended service life
