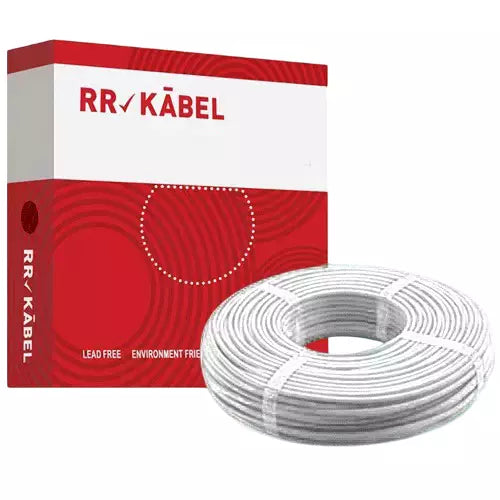

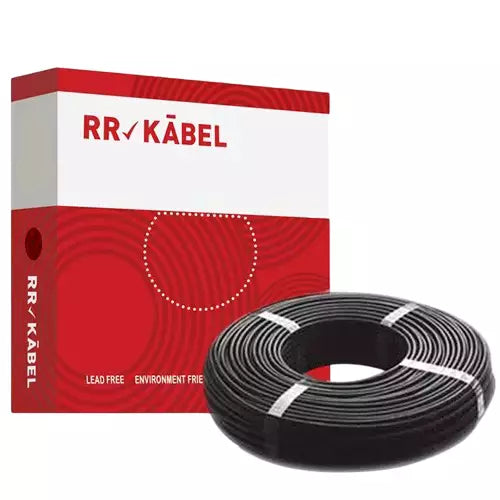

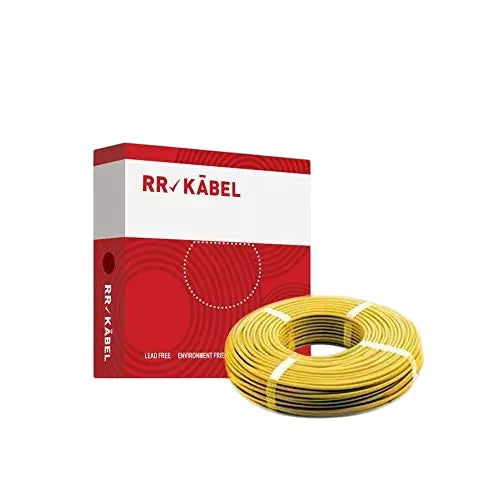

RR EBXL 1.50 Sqmm HFFR Single Core Copper Industrial Cable (90 Mtr)

The RR EBXL 1.50 Sqmm HFFR Single Core Copper Industrial Cable (90 Mtr) is a high-quality, halogen-free flame retardant (HFFR) cable designed for safety-critical industrial and building wiring applications. It is designed to provide reliable electrical performance while minimizing toxic emissions and smoke in fire conditions, suitable for use in commercial, residential, and industrial environments.

Key Specifications

• Conductor: 30 strands of electrolytic grade, annealed copper, Class 5 (per IS 8130) for enhanced flexibility and conductivity.

• Core Size: 1.50 Sqmm single core, ideal for power, control, and lighting circuits.

• Length: Supplied in a 90-meter coil suitable for site use and installations.

• Insulation: Electron Beam Cross-linked Halogen Free Flame Retardant (E-Beam XL HFFR, LS0H EBXL), non-toxic and non-corrosive, meeting IS 17048 standards.

• Insulation Thickness: Approximately 0.6 mm.

• Voltage Rating: Up to and including 1100V AC, meeting safety and performance norms.

• Current Carrying Capacity: Approximately 27A depending on installation conditions.

• Temperature Range: -25°C to +110°C for operation; short circuit temperature rating up to 300°C.

• Conductor Resistance: Approx. 13.3 Ω/km at 20°C.

• Flame Retardance: Self-extinguishing per IS 10810 P – 61 with low smoke emission and no halogen gases.

• Additional Properties: UV resistant, abrasion resistant, termite and rodent resistant, water resistant, supporting long service life in tough conditions.
