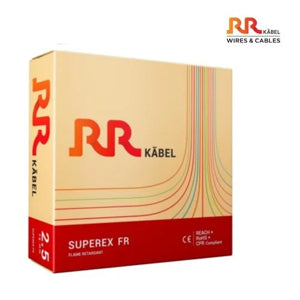

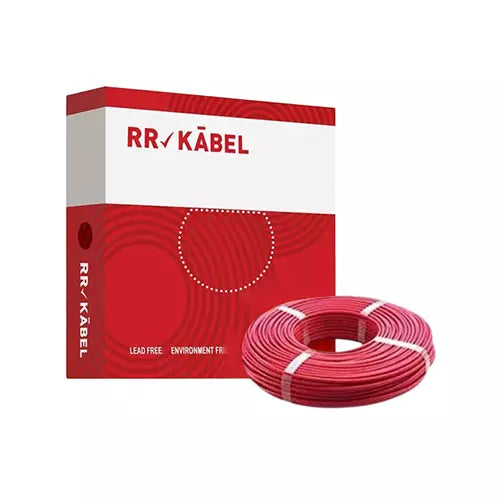

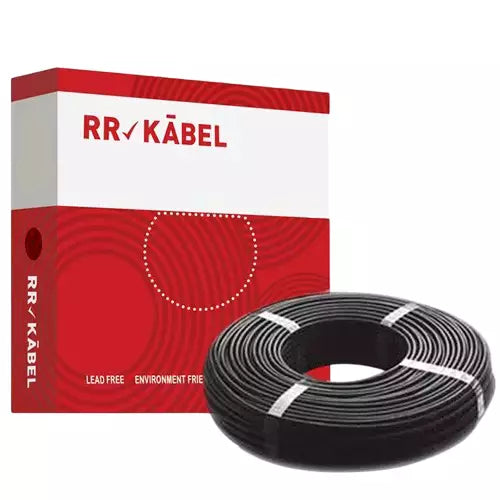

RR EBXL 1.00 Sqmm HFFR Single Core Copper Industrial Cable (90 Mtr)

The RR EBXL 1.00 Sqmm HFFR Single Core Copper Industrial Cable (90 Mtr) is designed for building and industrial use where low smoke, zero halogen emission, and high fire retardance are critical. It is suited for wiring circuits in commercial, residential, and public infrastructure projects demanding compliance with the latest fire safety regulations.

Key Specifications

• Conductor: Multistrand electrolytic-grade plain annealed copper, typically 32 strands (Class 5 as per IS 8130) for 1.0 sqmm size.

• Core Size: 1.00 sqmm single core, suitable for circuit wiring, control, and lighting.

• Cable Length: 90 meters per coil, standard for site installations.

• Insulation: Halogen Free Flame Retardant (HFFR), Electron Beam Crosslinked compound (LS0H/EBXL, HFI-XL 90), self-extinguishing, non-toxic, and non-corrosive.

• Insulation Thickness: 0.6 mm nominal.

• Voltage Rating: Up to and including 1100V AC.

• Current Carrying Capacity: About 19-21A for open/trunk installation; actual rating depends on installation conditions.

• Max. DC Conductor Resistance: ~19.5 Ω/km at 20°C.

• Temperature Range: -25°C to +110°C operational; short circuit rated up to 300°C insulation temp.

• Compliance: IS 17048 marked; RoHS, REACH, CE, FIA/TAC; conforms to new Central Electricity Authority regulations for public infrastructure.

• Color Options: Red, blue, yellow, green, black, white, grey, etc.
