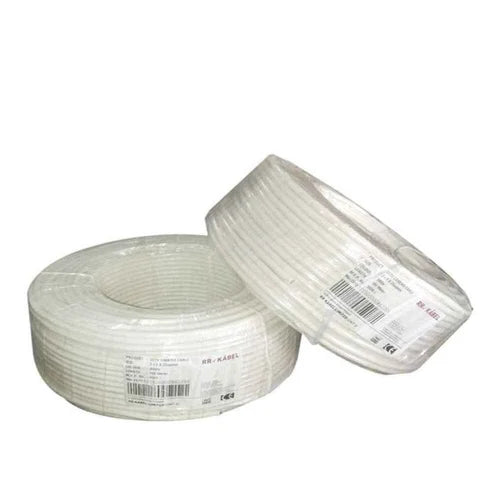

RR CCTV 90 MTR SCREENED PVC CABALES

RR CCTV 90 Meter Screened PVC Cables are specially designed for security and surveillance systems to transmit video signals with minimal distortion and attenuation.

Key specifications and features:

• Construction: These cables typically come in two variants, 4+1 or 3+1 cores, where the "4+1" means four video cores plus one power core.

• Conductor: Fine flexible tin-coated electrolytic grade copper strands for durability and excellent conductivity.

• Insulation for Video Signal: High dielectric strength foam polyethylene (Foam PE) providing low capacitance and excellent insulation.

• Screening: Annealed tin-coated copper braid with approx. 85% coverage and aluminum mylar tape, ensuring effective shielding against EMI/RFI interference.

• Sheath: Outer jacket made of durable black PVC, providing environmental protection.

• Power Core: Solid electrolytic grade annealed plain copper with high-density polyethylene insulation and PVC sheath.

• Nominal Cable Diameter: Around 6.0 to 6.8 mm depending on the variant.

• Core sizes: Typically video cores and power cores use 0.25 sq mm conductor strands.

• Designed for: Optimized video frequency transmission for CCTV, security cameras, and surveillance applications.

• Flexibility: Multi-stranded construction offers better bending radius and flexibility during installation.

• Packaging: Available in 90-meter coils with protective cartons.
