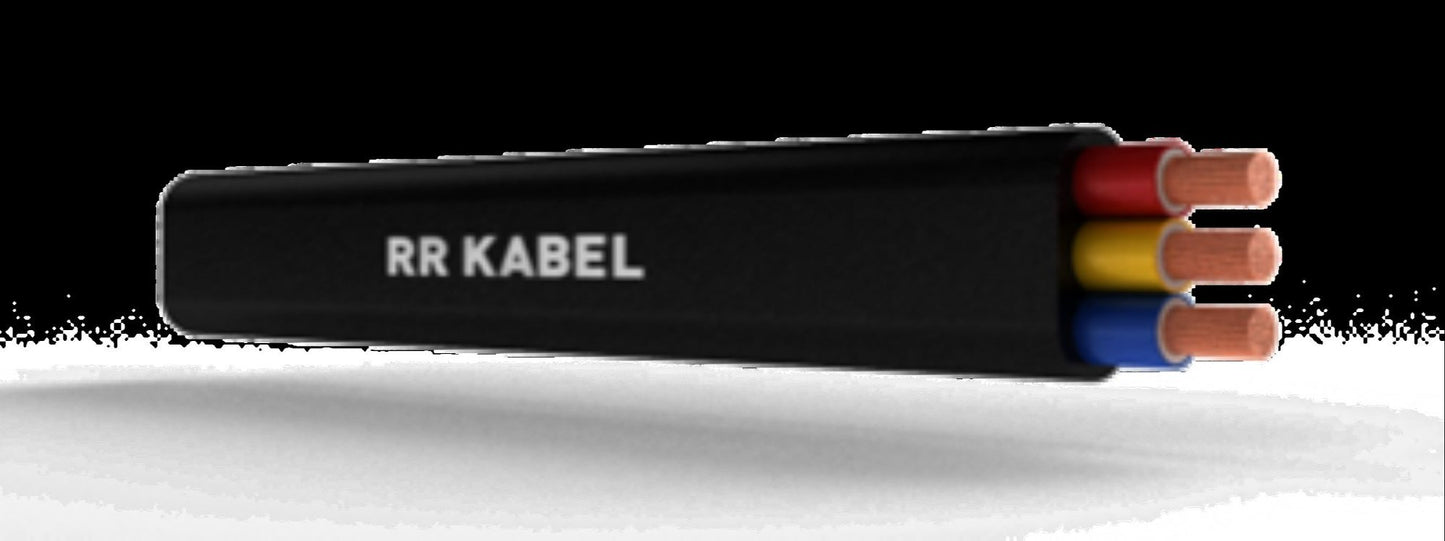

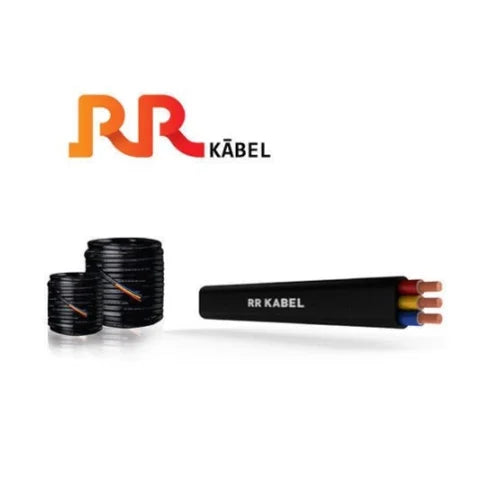

RR 6.0 Sqmm (84/0.3) 3 Core Submersible Flat Cable 1100V (100 MTR)

The RR 6.0 Sqmm (84/0.3) 3 Core Submersible Flat Cable 1100V (100 MTR) is a specialized cable designed for submersible pump applications, known for its durability, water resistance, and electrical safety.

Key Specifications

• Conductor: Electrolytic annealed copper, 84 strands of 0.3 mm diameter, class 2 conductor per IS 8130.

• Core Count and Colors: 3 cores with colors red, yellow (center core), and blue.

• Insulation and Sheath: Cross-linked polyethylene (XLPE) insulation with PVC sheath, black color, with knurling on the width sides for abrasion resistance.

• Voltage Rating: Up to and including 1100V AC.

• Nominal Insulation Thickness: 0.8 mm.

• Sheath Thickness: Approximately 1.1 mm.

• Overall Dimensions: Approx. 19.2 mm width × 8.4 mm height (±0.5 mm tolerance).

• Maximum DC Resistance: Approximately 3.30 Ω/km at 20°C.

• Current Carrying Capacity: Around 36 A.

• Temperature Rating: Maximum operating temperature 90°C; tested at 3kV for 5 minutes.

• Length: 100-meter coils.

• Certifications: IS 694 marked, FIA/TAC approved, REACH, RoHS, CE certified.
