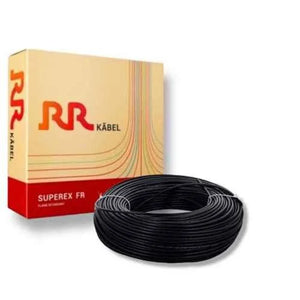

RR 25.0 Sqmm (196/0.4) 3 Core Submersible Flat Cable 1100V (50 MTR)

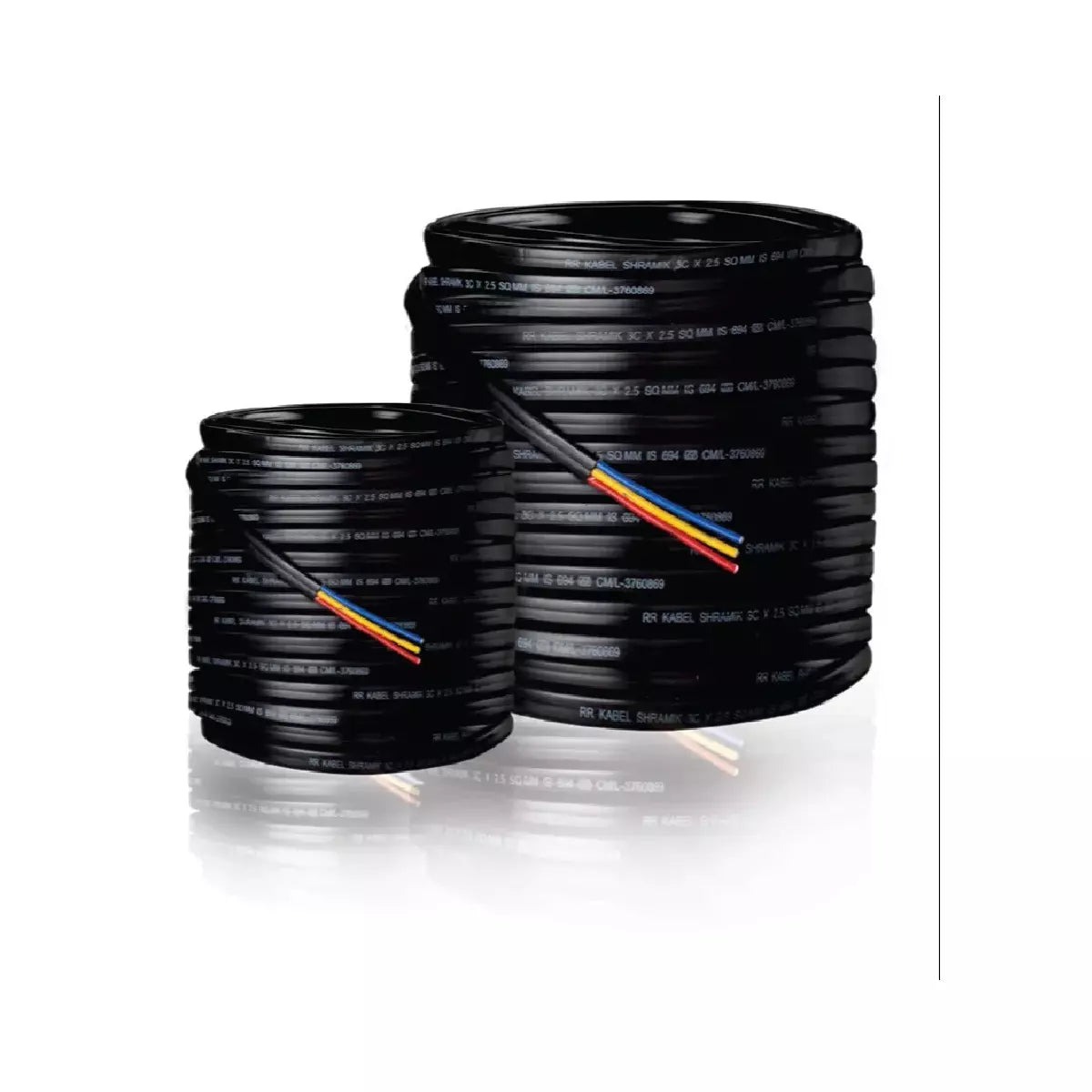

The RR 25.0 Sqmm (196/0.4) 3 Core Submersible Flat Cable 1100V (50 MTR) offers the same robust build and specifications typical of RR Kabel's submersible flat cables, designed for efficient and safe wiring in submersible pump applications.

Key Specifications for 50 MTR Length

• Conductor: Electrolytic grade annealed copper, 196 strands of 0.4 mm diameter, Class 2 stranded conductor.

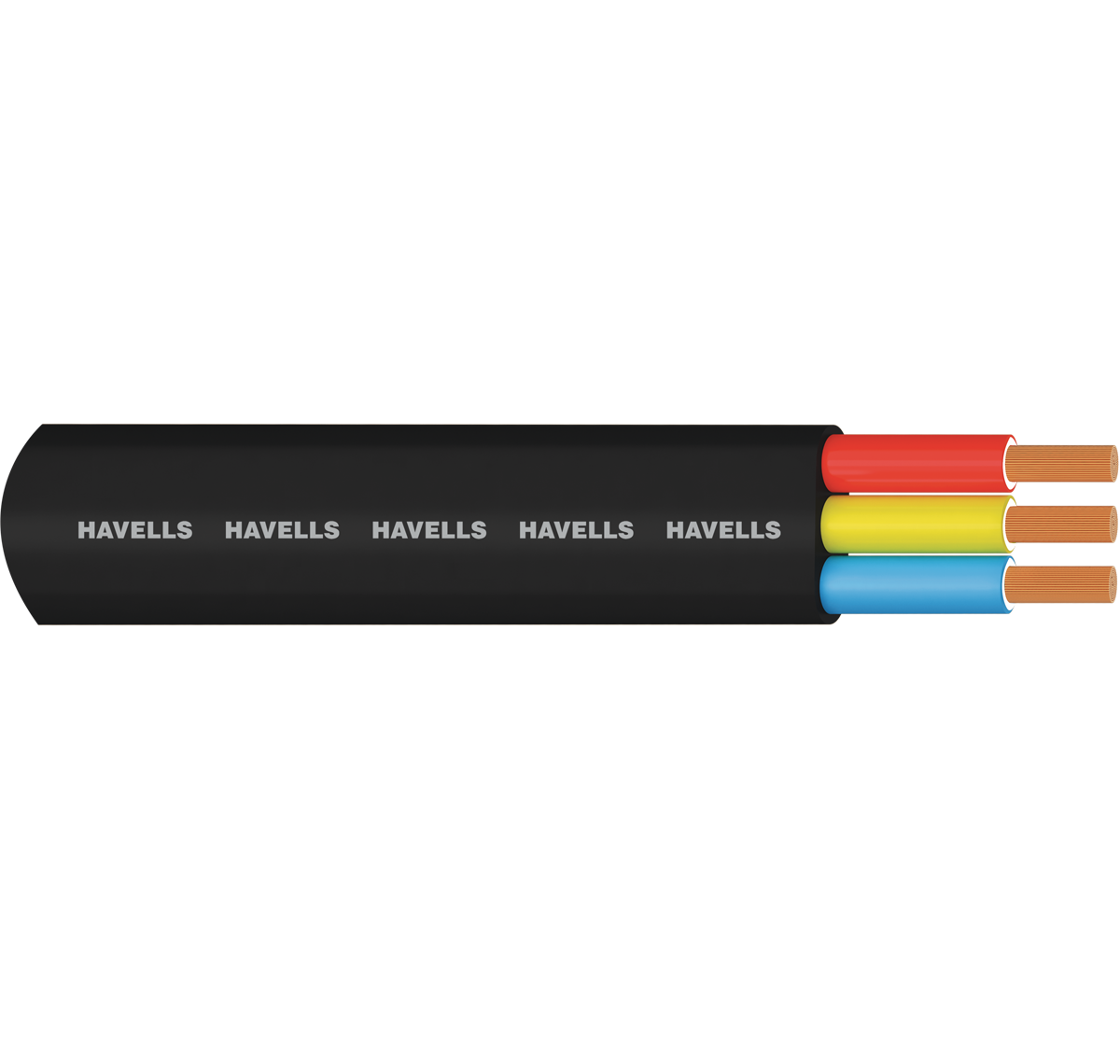

• Core Configuration: 3 cores colored red, yellow (center core), and blue.

• Insulation and Sheath: Cross-linked polyethylene (XLPE) insulation with PVC ST-2 outer sheath, specially designed with knurling for abrasion resistance.

• Voltage Rating: Up to and including 1100V AC.

• Nominal Insulation Thickness: 1.2 mm.

• Nominal Sheath Thickness: 2.0 mm.

• Approximate Dimensions: 36.5 mm width × 15.7 mm height (±0.5 mm).

• Max DC Resistance: 0.78 Ω/km at 20°C.

• Current Carrying Capacity: 80 A at 40°C ambient.

• Temperature Rating: Operating max 90°C; test voltage 3 kV for 5 minutes.

• Standard Length: 50 meters per coil.

• Certifications: IS 694 marked, FIA/TAC approved, REACH, RoHS compliant, CE certified.
