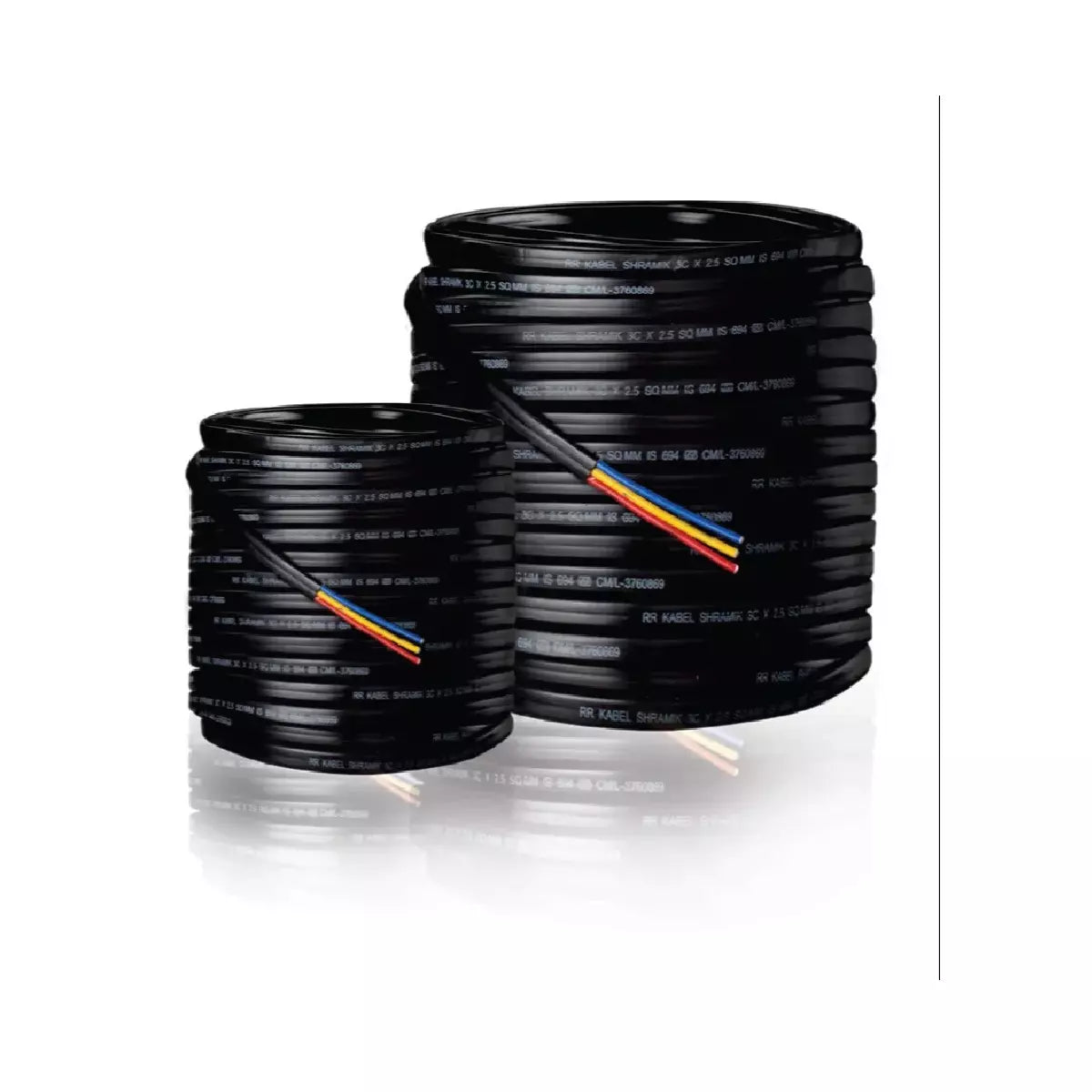

RR 25.0 Sqmm (196/0.4) 3 Core Submersible Flat Cable 1100V (100 MTR)

The RR 25.0 Sqmm (196/0.4) 3 Core Submersible Flat Cable 1100V (100 MTR) by RR Kabel is a robust cable engineered for submersible pump connections, providing high conductivity, mechanical strength, and resistance to environmental stresses.

Key Technical Details

• Conductor: Electrolytic grade annealed plain copper with 196 strands of 0.4 mm diameter, Class 2 conductor.

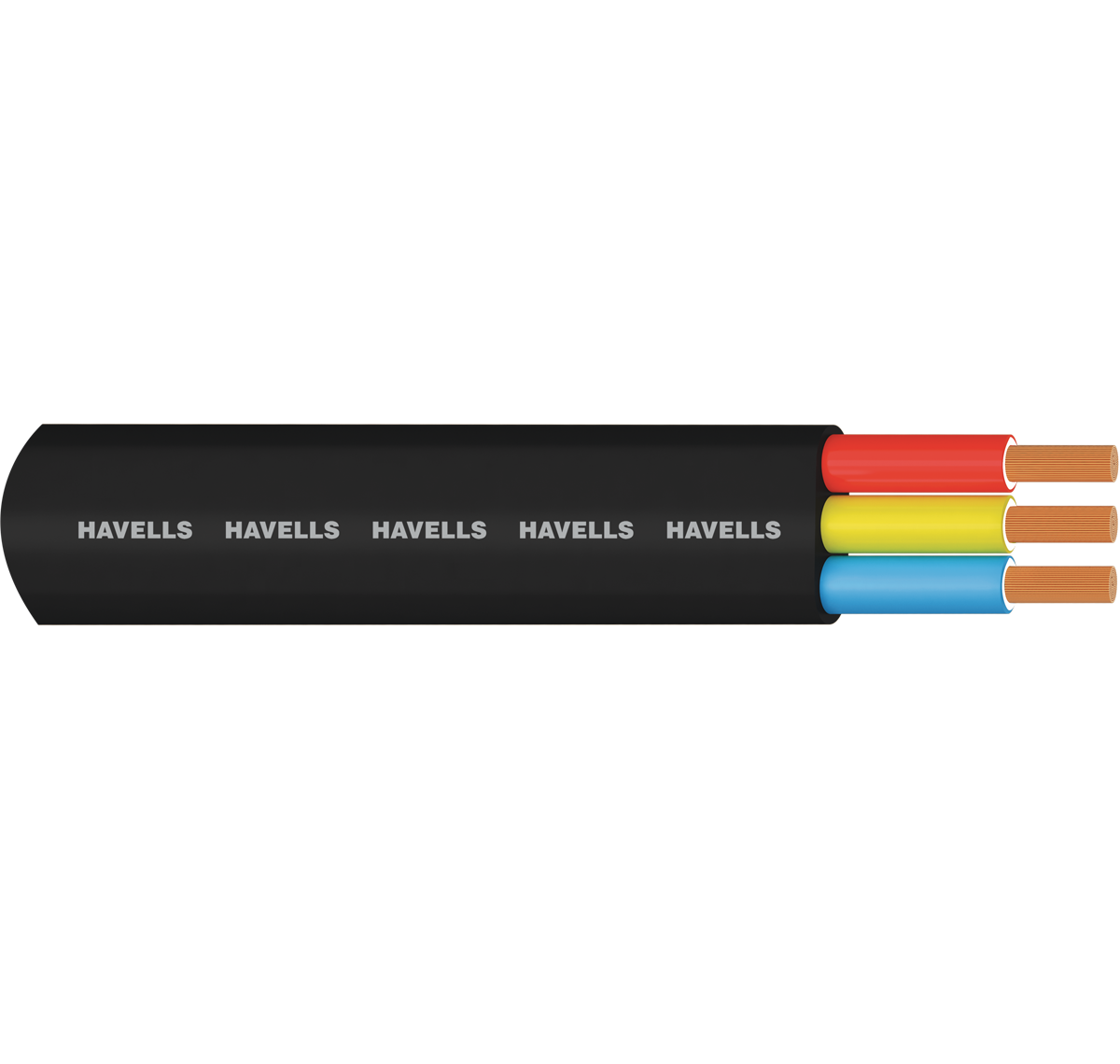

• Core Configuration: 3 cores, color-coded red, yellow (center core), and blue.

• Insulation and Sheath: XLPE insulation with PVC ST-2 sheath, black with knurling on width sides for abrasion resistance.

• Voltage Rating: Rated up to and including 1100V AC.

• Nominal Insulation Thickness: 1.2 mm.

• Nominal Sheath Thickness: 2.0 mm.

• Approximate Dimensions: 36.5 mm width × 15.7 mm height.

• Maximum DC Resistance: 0.78 Ω/km at 20°C.

• Current Carrying Capacity: 80 A at 40°C ambient temperature.

• Operating Temperature: Maximum 90°C; tested at 3 kV for 5 minutes.

• Standard Length: 100 meters per coil.

• Certifications: IS 694 marked, FIA/TAC approved, REACH, RoHS, CE compliant.
