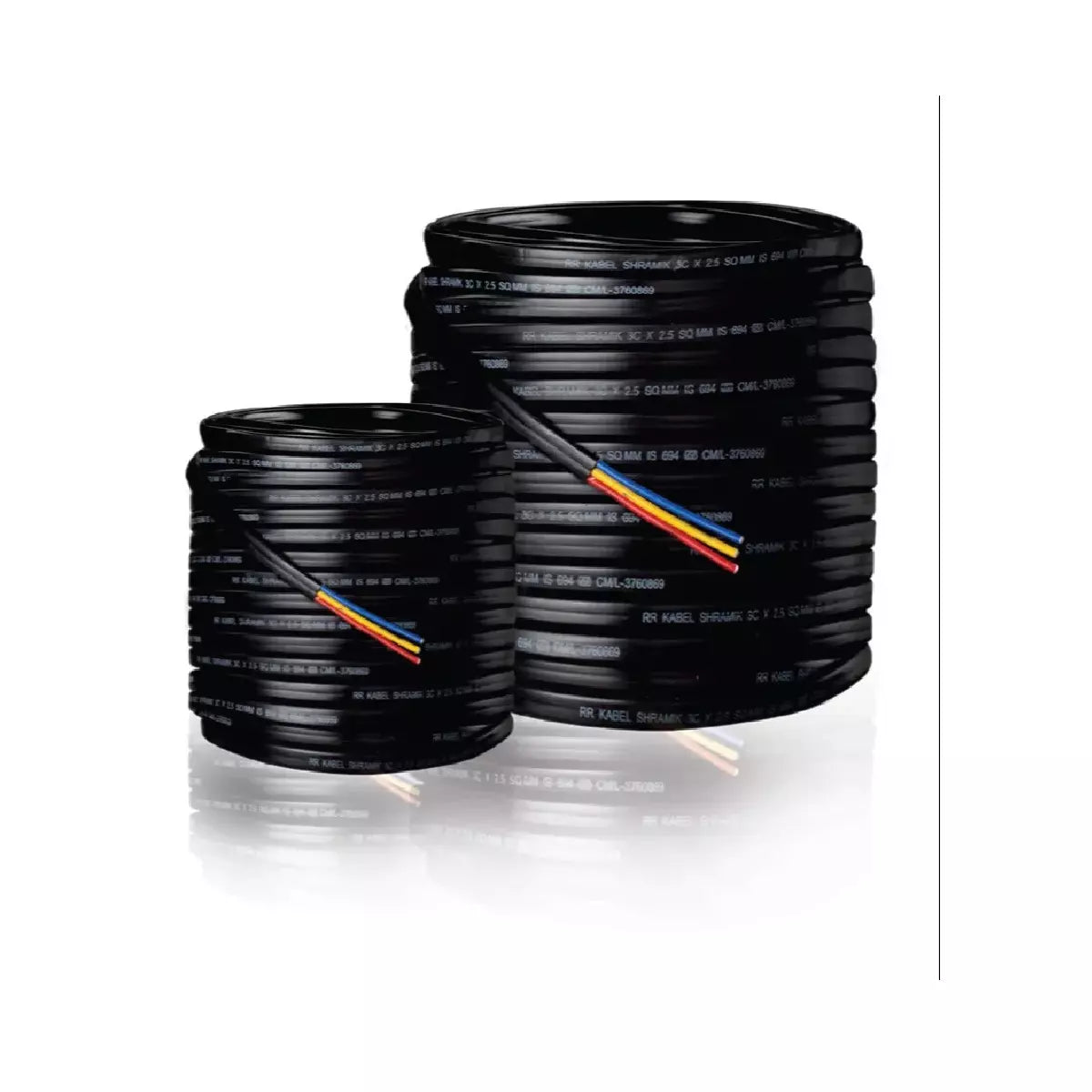

RR 16.0 Sqmm (126/0.4) 3 Core Submersible Flat Cable 1100V (50 MTR)

The RR 16.0 Sqmm (126/0.4) 3 Core Submersible Flat Cable 1100V (50 MTR) is designed for submersible pump wiring with enhanced durability, water resistance, and electrical performance suitable for harsh outdoor and underground environments.

Key Specifications

• Conductor: Electrolytic annealed copper, 126 strands of 0.4 mm diameter, class 2 conductor per IS 8130.

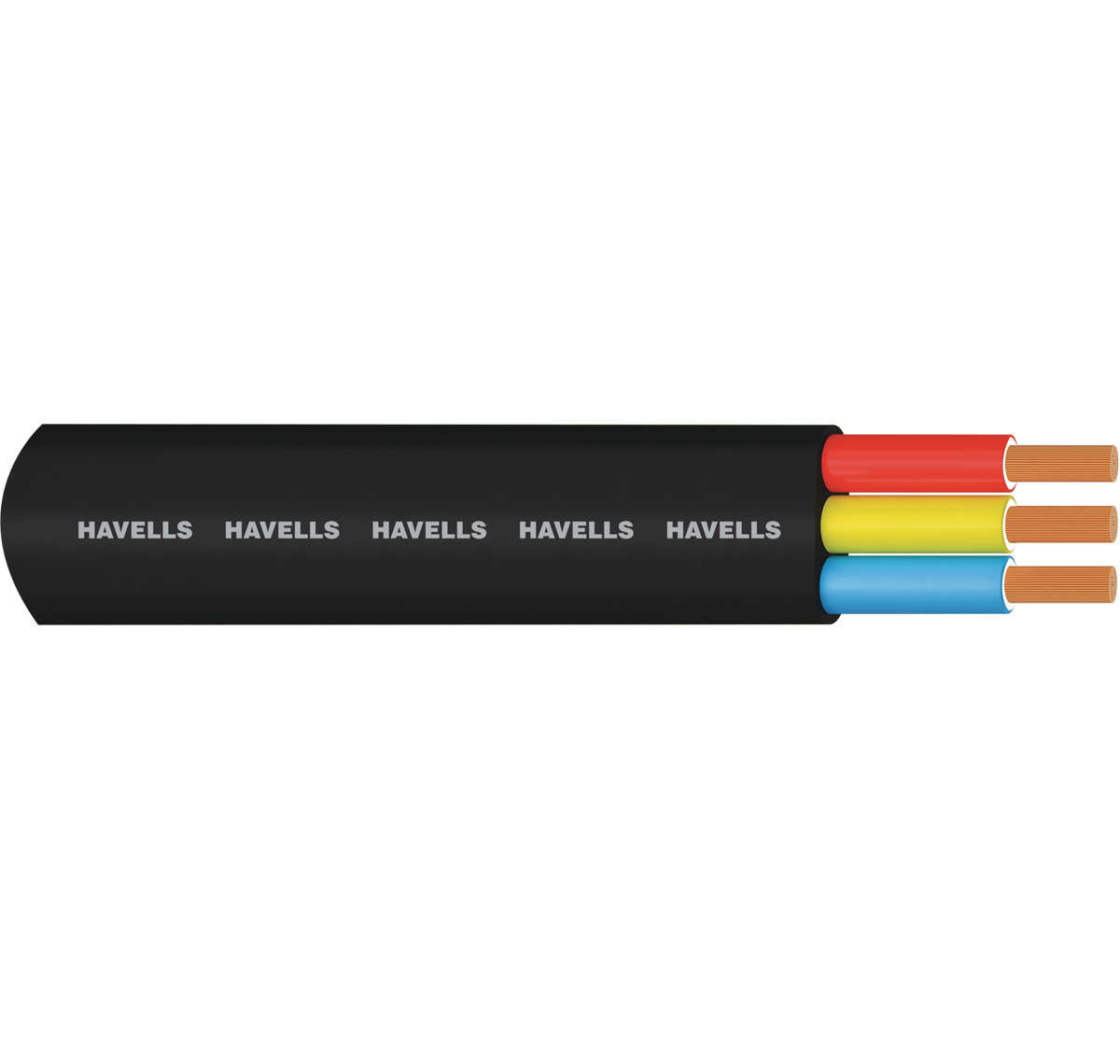

• Core Count and Colors: 3 cores, color-coded red, yellow (center core), and blue.

• Insulation: XLPE insulation with PVC ST-2 sheath; sheath is black with knurling on width sides for abrasion resistance and improved mechanical protection.

• Voltage Rating: Up to and including 1100V AC.

• Nominal Insulation Thickness: 1.0 mm.

• Nominal Sheath Thickness: 1.4 mm.

• Overall Dimensions: Approx. 29.0 mm width × 12.4 mm height (±0.5 mm tolerance).

• Maximum DC Resistance: 1.21 Ω/km at 20°C.

• Current Carrying Capacity: 64A.

• Operating Temperature: Max 90°C.

• Test Voltage: 3 kV for 5 minutes.

• Length: 50 meters per coil.

• Certifications: IS 694 marked, FIA/TAC approved, REACH, RoHS, CE certified.
