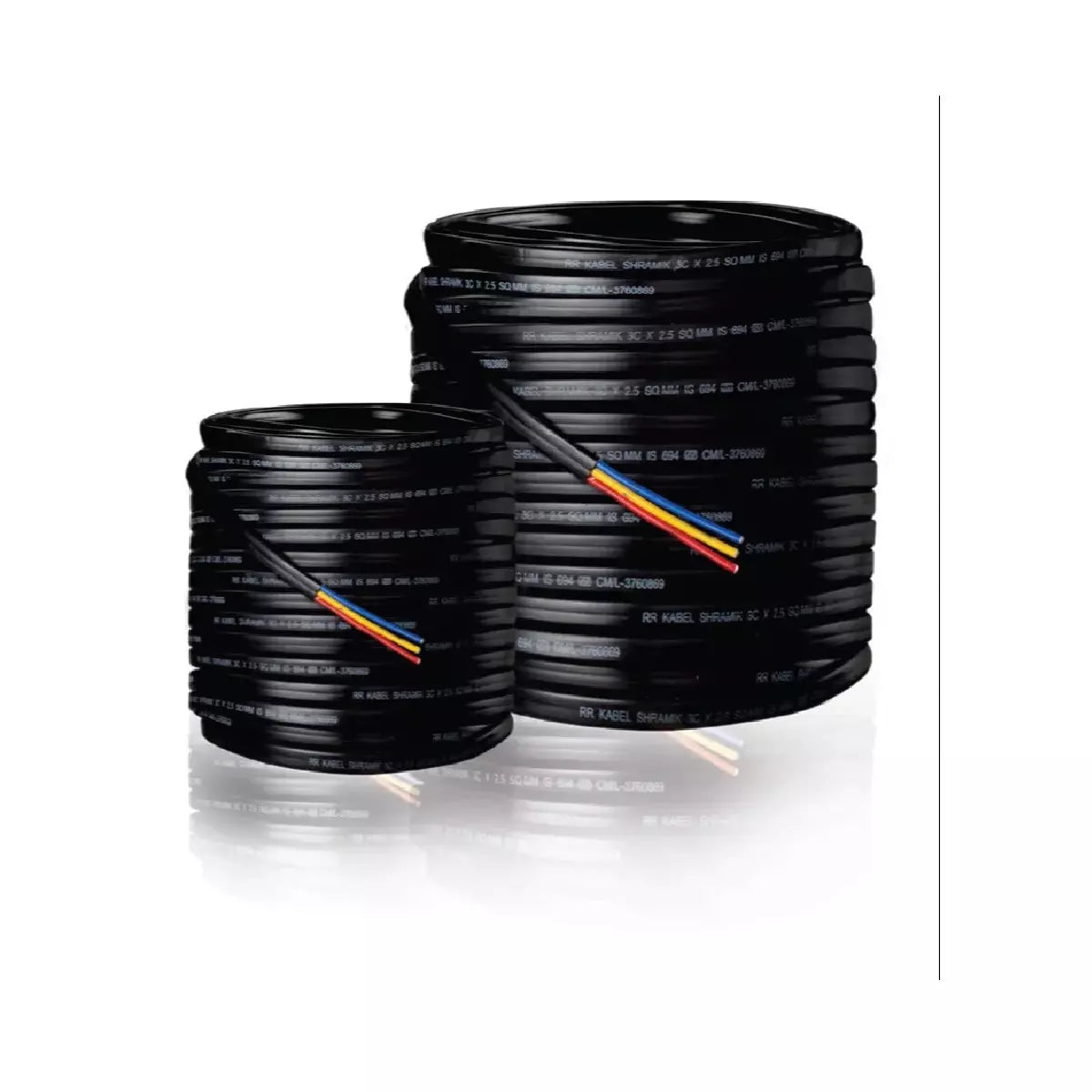

RR 16.0 Sqmm (126/0.4) 3 Core Submersible Flat Cable 1100V (100 MTR)

The RR 16.0 Sqmm (126/0.4) 3 Core Submersible Flat Cable 1100V (100 MTR) from RR Kabel is a high-capacity cable designed for submersible pump wiring, combining durability, water resistance, and fire safety for harsh and demanding environments.

Key Specifications

• Conductor: Electrolytic annealed copper with 126 strands of 0.4 mm diameter, Class 2 as per IS 8130, compactly bunched for flexibility and conductivity.

• Core Count and Colors: 3 cores, color-coded red, yellow (center core), and blue.

• Insulation: XLPE insulation paired with PVC ST-2 type sheath; sheath is black with knurled sides for improved abrasion resistance and protection.

• Voltage Rating: Suitable up to and including 1100V AC.

• Insulation Thickness: 1.0 mm nominal.

• Sheath Thickness: 1.4 mm nominal.

• Overall Dimensions: Approximately 29.0 mm width × 12.4 mm height (± 0.5 mm).

• Maximum DC Resistance: 1.21 Ω/km at 20°C.

• Current Carrying Capacity: Rated at 64 A.

• Operating Temperature: Maximum 90°C; tested for 3 kV for 5 minutes.

• Standard Length: 100 meters per coil.

• Certifications: IS 694 marked, FIA/TAC approved, REACH and RoHS compliant, CE certified.
