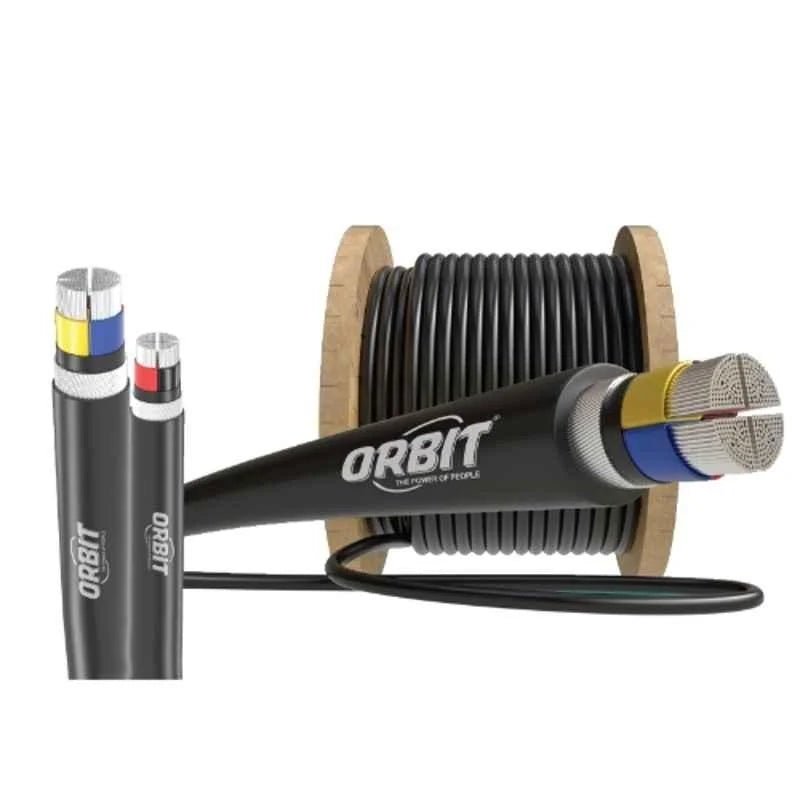

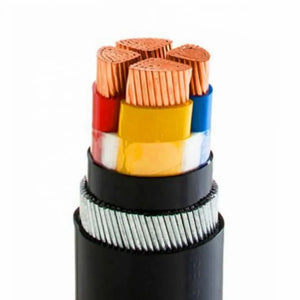

RR 1.50 Sqmm Multicore Shielded Armoured Flexible Cable (PVC/XLPE) 1100V (100 MTR)

The RR 1.50 Sqmm Multicore Shielded Armoured Flexible Cable (PVC/XLPE) 1100V, supplied in a 100-meter coil, is designed for demanding industrial and control applications where enhanced electrical integrity, EMI/RFI shielding, and mechanical robustness are required.

Key Specifications

• Conductor: Stranded, annealed copper as per IS 8130 Class 2, ensuring flexibility and optimal conductivity.

• Core Size: 1.5 Sqmm, available in multiple core counts (common options: 2, 3, 4, 5, 8, 16 cores, etc.) for custom installations.

• Insulation: PVC (Type-A as per IS 5831), or XLPE for higher temperature and electrical performance, with HR (Heat Resistant) or FRLS (Flame Retardant Low Smoke) variants offered.

• Shielding: Overall aluminium mylar tape with tinned copper drain wire, engineered to minimize electromagnetic interference and ensure signal security.

• Armouring: Galvanized steel wire/strip, providing enhanced protection against physical hazards, abrasion, and rodents.

• Sheath: Outer sheath in black PVC (Type ST-1 or ST-2 per IS 5831, FR/FRLS options available), offering UV and environment resilience.

• Rated Voltage: 1100V AC (market listings sometimes state 500V; confirm rating before ordering).

• Compliance: Meets IS 1554, IS 7098, EN 50288-7 for flame retardance, conductivity, and mechanical safety.
