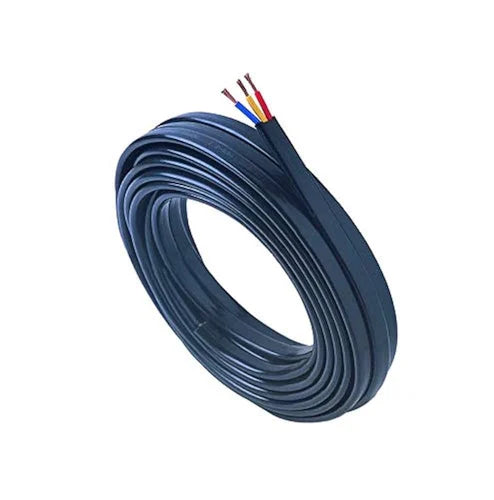

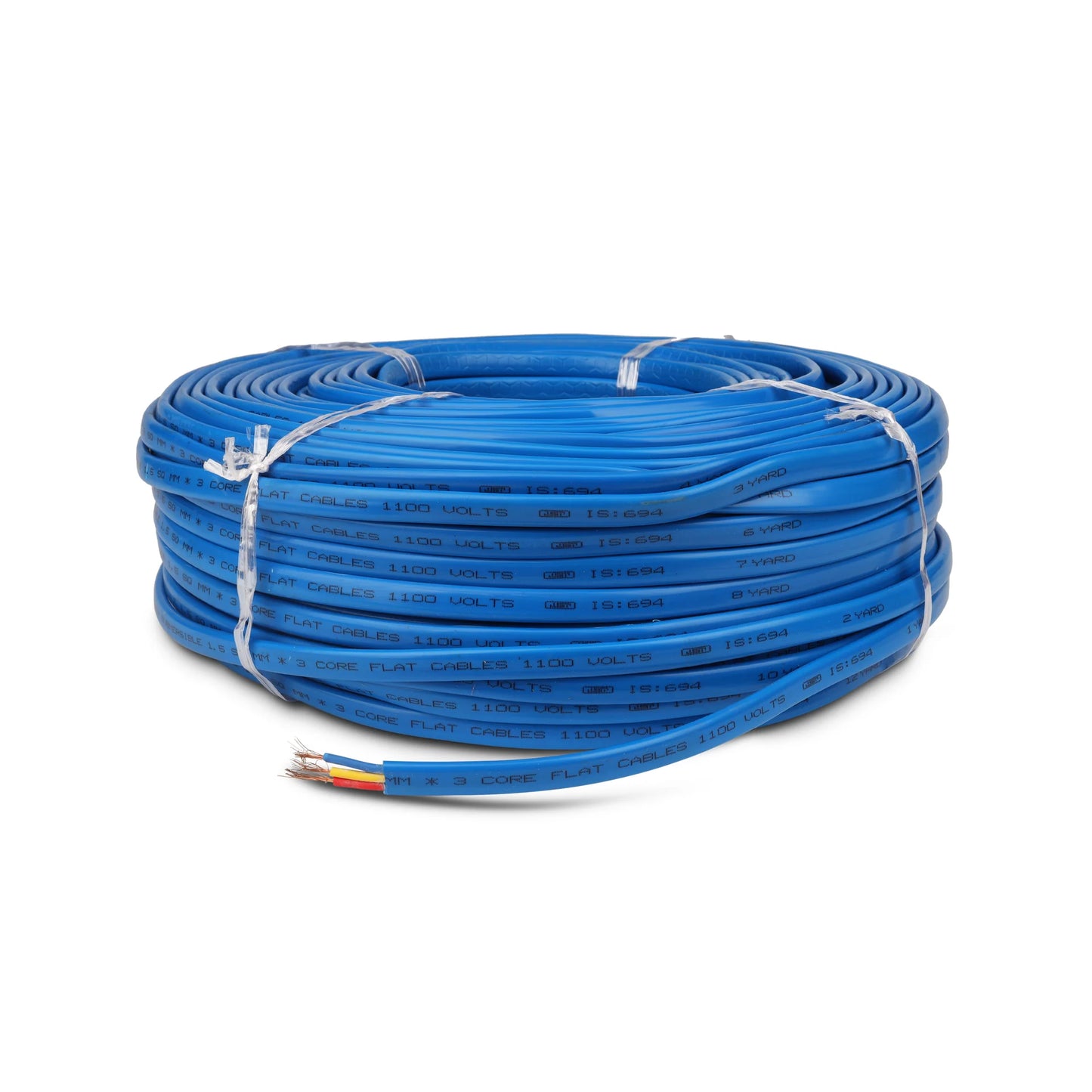

RR 1.5 Sqmm (30/0.25) 3 Core Submersible Flat Cable 1100V (100 MTR)

The RR 1.5 Sqmm (30/0.25) 3 Core Submersible Flat Cable 1100V (100 MTR) is a high-quality cable designed for submersible pump connections, ideal for tough outdoor environments with strict durability and water resistance requirements.

Key Specifications

• Conductor: Electrolytic grade annealed copper, construction of each core is 30 strands of 0.25 mm diameter, providing a total cross-sectional area of 1.5 Sqmm per core.

• Core and Sheath Colors: Cores colored red, yellow (center core), blue; sheath colored black for easy identification and handling.

• Insulation and Sheath: PVC insulated and sheathed, resistant to water and abrasion; available in general (PVC 70°C, IS 5831 Type A, ST-1 sheath) and heat resistant (PVC HR 85°C, IS 5831 Type C, ST-2 sheath) options.

• Nominal Insulation Thickness: 0.6 mm.

• Nominal Sheath Thickness: 0.9 mm.

• Voltage Rating: Suitable for up to and including 1100V AC.

• Conductor Resistance: Maximum 13.30 Ω/km at 20°C.

• Overall Dimensions: Approx. 12.0 mm (width) × 5.6 mm (height), tolerance ±0.5 mm.

• Current Carrying Capacity: Rated for 16A under standard installation.

• Length: Supplied in 100-meter coils, longer lengths available upon request.

• Certifications and Approvals: IS 694 marked, FIA/TAC approved, REACH, RoHS, CE compliant.
