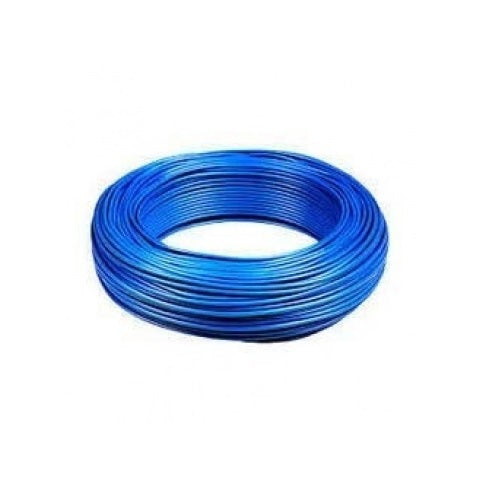

Polycab Building managements system 0.75 sq.mm 24/.2 , 100 mtr Cable

Polycab Building Management System (BMS) cable with 0.75 sq.mm conductor size and 24 cores (24/.2 strands) is a screened, flexible cable designed for control and monitoring applications in building automation.

Key Specifications for Polycab BMS 0.75 sq.mm 24 Core Cable:

• Conductor: Flexible, annealed bare copper, 24 strands of 0.2 mm each, conforming to Class 5 IEC 60228 standards.

• Conductor Size: 0.75 sq.mm.

• Voltage Rating: Typically 300/500 volts.

• Insulation: Extruded PVC Type 'A' with a minimum thickness around 0.44 mm.

• Screening: Aluminium mylar tape with a flexible bare copper drain wire, typically 0.5 sq.mm conductor size for drain wire.

• Outer Sheath: Extruded FR-LSH (Flame Retardant Low Smoke Halogen free) blue PVC, nominal thickness about 0.93 mm.

• Cable Diameter: Approximate outer diameter around 7.5 ± 1.0 mm.

• Temperature Rating: Max conductor temperature under normal operation 70°C; during short circuit up to 160°C.

• Minimum Bending Radius: 12 times overall diameter.

• Standard Packing: Usually available in 100 meter or 300 meter coils.
