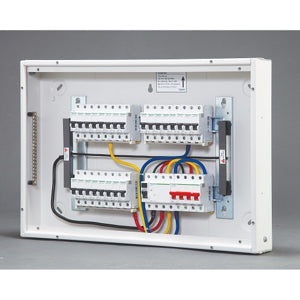

Schneider SPN Distribution Board

Key Features and Specifications:

• Model: Easy9 4 Way SPN  Distribution Board (Model: EZ9ESND04)

• Number of Ways: 4

• Door: Double door for enhanced safety and maintenance convenience

• Material: Body made from high-quality plastic with metallic powder-coated finish on the door

• Protection Rating: IP43 protection against dust and water splashes

• Dimensions: Approximately 221mm (W) x 224mm (H) x 93mm (D)

• Standards Compliance: IEC 61439-3

• Breaking Capacity: Suitable for MCBs and RCCBs with rated current up to 63A

• Compatibility: Designed for use with Easy9 series modular devices including MCBs and RCCBs

• Color: White (RAL 9003)

• Mounting: Suitable for surface or flush mounting

• Additional Features: Frame-less clean door design, easy installation, impact-resistant enclosure with IK08 rating
