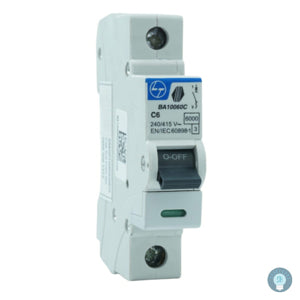

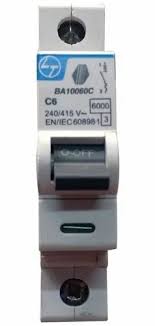

L&T Tripper 6A C-Curve Single Pole MCB, BA10060C

The L&T Tripper 6A C-Curve Single Pole MCB (model BA10060C) is a miniature circuit breaker designed primarily for the protection of lighting and small power circuits. Here are its key technical specifications:

• Type: Single Pole (SP)

• Current Rating: 6A

• Voltage Rating: 230/415V AC

• Tripping Curve: C-Curve (suitable for circuits with moderate inrush—typically lighting, small motors)

• Breaking Capacity: 6 kA (high fault protection)

• Terminal Capacity: Can accommodate up to 35 sqmm cable

• Standards: IS/IEC 60898-1, EN/IEC 60898-1, IS 8828-1996

• Frequency: 50/60 Hz

• Dimensions (approx.): 74.5 mm (L) × 17.5 mm (W) × 87.3 mm (H)

• Special Features: Heavy duty contacts, true contact indication, high-quality fire retardant casing, breathing channels for cooler operation, energy saving (lower watt loss), 1-year or 18-month warranty

• Applications: Distribution boards, residential and commercial circuit protection, overload/short-circuit safety

This MCB offers reliable performance and high protection, making it a robust choice for safe electrical distribution.
