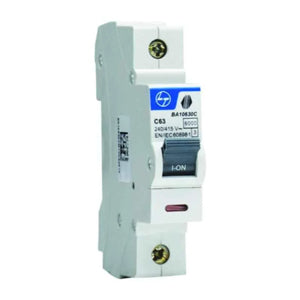

L&T Tripper 32A C-Curve Single Pole MCB, BA10320C

The L&T Tripper 32A C-Curve Single Pole MCB, model BA10320C, offers these detailed specifications:

• Current Rating: 32 Amperes

• Curve Type: C-Curve (suitable for circuits with moderate inrush current such as lighting and motor loads)

• Number of Poles: Single Pole (1P)

• Voltage Rating: 240/415V AC

• Breaking Capacity: 6 kA, providing high fault protection capability

• Terminal Capacity: Supports cable size up to 35 sqmm

• Standards Compliance: IS/IEC 60898-1, IS 8828-1996

• Frequency: 50/60 Hz

• Key Features: Heavy-duty contacts for extended life, fire-retardant casing, true contact indication for operational status, cooling channels for heat dissipation, energy-saving design with significantly lower watt loss compared to IEC standards

• Dimensions: Approx. 74.5mm (L) × 17.5mm (W) × 87.3mm (H)

• Applications: Ideal for protection of electrical circuits in residential, commercial, and light industrial environments against overloads and short circuits

This MCB ensures reliable and safe circuit protection with a compact, durable design from a trusted manufacturer, Larsen & Toubro Limited (L&T).
