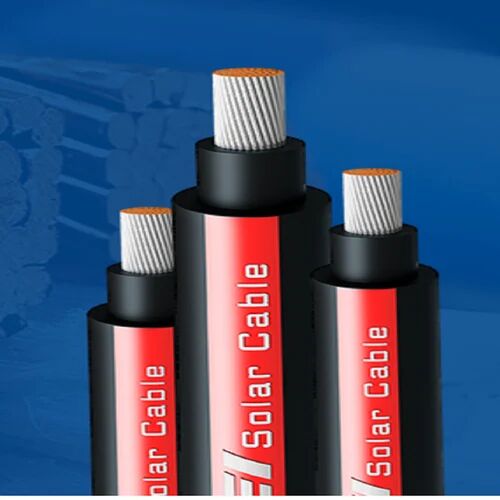

KEI MAKE 10.0 SQMM PVC SOLAR ( XLPE ) 1500V DC CABLE (1000MTR)

Technical Specifications

• Conductor: Flexible tinned copper, Class 5 as per IEC 60228 standards for fine strand flexibility.

• Insulation: Cross-linked polyolefin (XLPE or XLPO) for improved heat, flame, and chemical resistance.

• Sheath: UV-stabilized, flame-retardant, halogen-free PVC outer sheath for enhanced weather resistance and safety in fire events.

• Voltage Rating: Designed for 1500V DC operation, with a maximum permitted DC of 1800V.

• Temperature Range: Operates from -40°C to +90°C; conductor can reach up to 120°C for short durations, ensuring reliability in harsh climates.

• Certification & Standards: Complies with international standards 2 Pfg 1169/08.2007 or EN 50618 (TÜV certified), suited for long-term solar rooftop and ground-mount installations.

• Mechanical Properties: Minimum bending radius is six times the outer diameter (fixed installations); insulation and sheath offer tensile strength and elongation to endure installation stresses.

• Resistance Features: Designed to resist oil, acids, alkaline solutions, ozone, and UV. Also fire-retardant and halogen-free, minimizing toxic gas emissions in case of fire.
