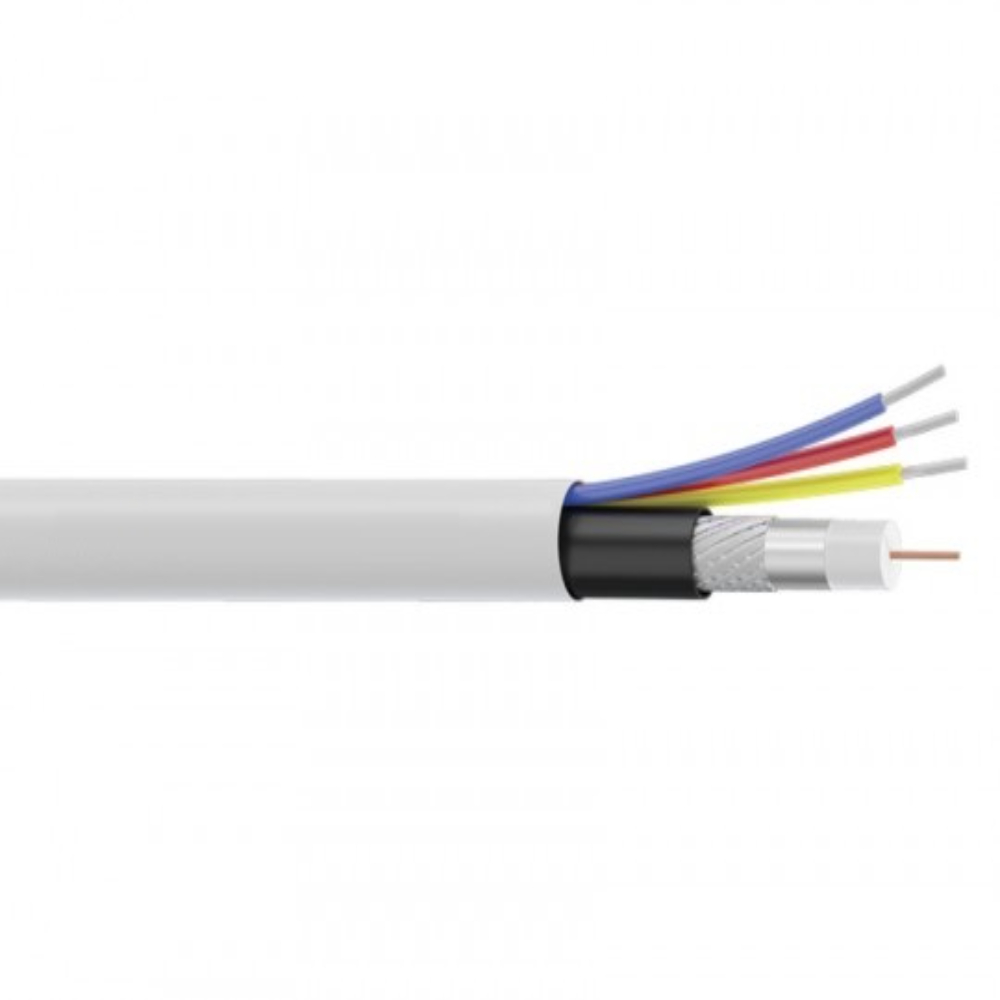

KEI CCTV (3+1 ) CABLE

KEI (3+1)  CCTV Cable is a composite cable designed for CCTV camera installations combining video signal transmission and power in a single cable run. Here are the details:

• Construction: The cable has one  coaxial cable core for video and three additional insulated power cores (3+1 configuration) for power supply and control.

• Coaxial Core (RG-59):

  • Conductor: Solid bare copper, approximately 0.81 mm diameter.

  • Dielectric: Physical foam polyethylene insulation, diameter about 3.6 mm.

  • Shielding: Bonded aluminum tape plus aluminum alloy wire braid with minimum 60% coverage.

  • Outer jacket: Black PVC with approximately 6.10 mm diameter.

  • Designed for low signal attenuation with good immunity to interference.
